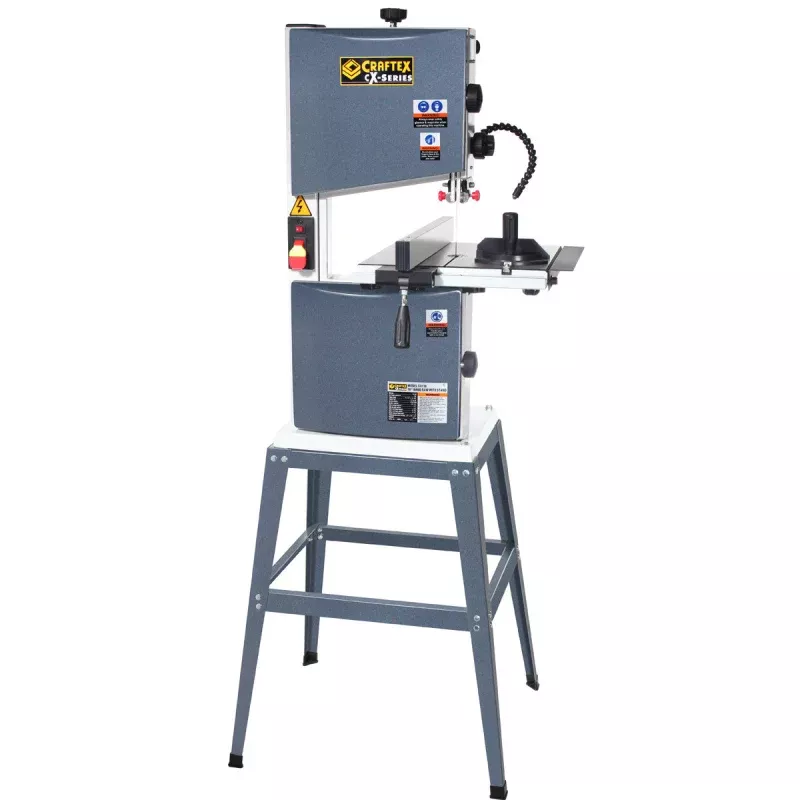

The Craftex CX-Series CX118 is a compact 10″ woodworking band saw designed for accurate cutting while remaining light enough to reposition around the shop. Its 1/2HP, 110V motor delivers a blade speed of 2,750 FPM, while the precision-balanced cast aluminum wheels help support smooth blade operation.
A cast iron table with an extension wing provides a 13-1/8″ x 13-3/8″ work surface and tilts from 0 to 45 for angled cuts. The saw also includes a smooth-gliding fence, miter gauge, quick-release blade tension lever, LED work lamp, and an ON/OFF switch with a removable safety key to help prevent unauthorized use.
The open stand raises the table to a comfortable working height, while the 4″ dust collection port allows the saw to be connected to a compatible dust collection system. Finished in durable powder-coated two-tone paint, the CX118 is backed by a three-year warranty.
Features
-
10″ throat capacity
-
1/2HP, 110V, single-phase motor
-
Precision-balanced cast aluminum wheels
-
Quick-release blade tension lever
-
Cast iron table with extension wing
-
13-1/8″ x 13-3/8″ total table surface
-
Table tilts from 0 to 45
-
Smooth-gliding fence
-
Miter gauge
-
LED work lamp
-
ON/OFF switch with removable safety key
-
4″ dust collection port
-
Open stand
-
Powder-coated two-tone finish
-
Three-year warranty
Specifications
-
Model: CX118
-
Motor: 1/2HP, 110V, 3.4A, single phase
-
Switch: ON/OFF switch with safety key
-
Throat Capacity: 10″
-
Maximum Cutting Width: 9-1/2″
-
Maximum Cutting Height: 4-1/8″
-
Table Size: 13-1/8″ x 13-3/8″, including extension table
-
Table Tilt: 0 to 45
-
Wheel Construction: Precision-balanced cast aluminum
-
Blade Speed: 2,750 FPM
-
Blade Length: 67-1/2″
-
Minimum Blade Width: 1/8″
-
Maximum Blade Width: 1/2″
-
Floor-to-Table Height: 41-1/2″
-
Dust Collection Port: 4″
-
Overall Dimensions Without Stand: 27″ L x 18″ W x 33″ H
-
Overall Dimensions With Stand: 30″ L x 19-1/2″ W x 59-1/2″ H
-
Approximate Weight: 37 kg
-
Finish: Powder-coated paint
-
Warranty: Three years
Comes With
-
Open stand
-
Fence
-
Miter gauge
-
Extension table
-
LED work lamp
-
Safety key
FAQ
What is the cutting capacity of the CX118?
The saw has a 10″ throat, a maximum cutting width of 9-1/2″, and a maximum cutting height of 4-1/8″.
What blade sizes can the CX118 use?
The saw uses a 67-1/2″ blade and accepts blade widths from 1/8″ to 1/2″.
Can the table be tilted for angled cuts?
Yes. The cast iron table tilts from 0 to 45.
Does the CX118 include a fence and miter gauge?
Yes. The saw includes a smooth-gliding fence and a miter gauge.
Does this band saw include a stand?
Yes. The CX118 includes an open stand that provides a floor-to-table height of 41-1/2″.
Can the CX118 be connected to a dust collector?
Yes. It has a 4″ dust collection port for connection to a compatible dust collection system.
What warranty is included?
The CX118 is covered by a three-year warranty.
