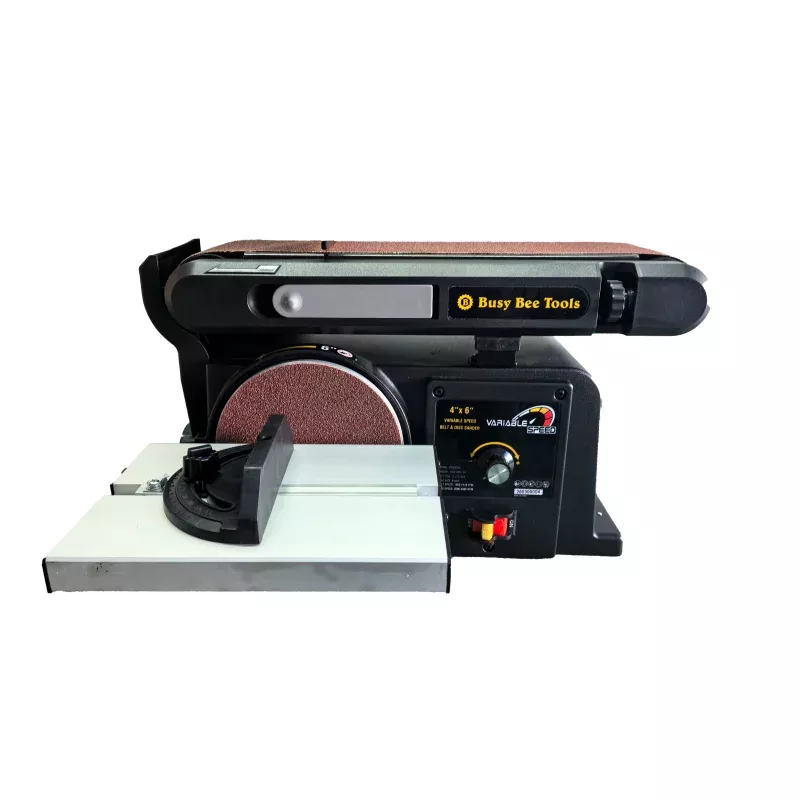

The Busy Bee Tools BBSD436 Variable Speed Belt and Disc Sander combines two sanding stations in one compact benchtop machine. Its 4″ x 36″ sanding belt and 6″ disc provide flexible options for edge sanding, face sanding, end-grain work, shaping, and general material removal.
Variable-speed operation allows the sanding speed to be adjusted between 2,000 and 4,000 RPM to suit different woodworking tasks and materials. The belt station can be positioned horizontally or vertically, making it easier to accommodate workpieces of different sizes and profiles.
The adjustable worktable tilts from 0 to 45 for controlled angle sanding and can be used with either the belt or disc station. A belt tracking adjustment helps keep the sanding belt running accurately, while the lever-release tensioning system simplifies belt changes. The peel-and-stick disc design also allows worn sanding discs to be replaced quickly.
A sturdy cast base helps reduce vibration during operation, and the integrated dust outlet allows connection to a compatible dust collection system. For added security, the ON/OFF switch includes a removable safety key to help prevent unauthorized use.
Features
- Combines a 4″ x 36″ sanding belt and 6″ sanding disc
- Variable-speed operation for controlled sanding
- No-load speed range of 2,000 to 4,000 RPM
- Belt speed range of 1,060 to 2,110 FPM
- Suitable for shaping, finishing, edge sanding, face sanding, and stock removal
- Belt arm adjusts for horizontal or vertical sanding
- Worktable tilts from 0 to 45 for angled sanding
- Worktable can be used with either sanding station
- Belt tracking adjustment helps keep the belt running true
- Lever-release belt tensioning supports quick belt changes
- Peel-and-stick disc system simplifies sanding disc replacement
- Integrated dust outlet connects to a compatible dust collection system
- Cast base helps provide stable, low-vibration operation
- Compact design is suitable for benchtop use
- Removable safety key helps prevent unauthorized operation
- Covered by a two-year warranty
Specifications
- Model: BBSD436
- Product Type: Variable-speed belt and disc sander
- Voltage: 120 volts
- Frequency: 60 Hz
- Amperage: 3 amps
- No-Load Speed: 2,000 to 4,000 RPM
- Belt Size: 4″ x 36″
- Belt Speed: 1,060 to 2,110 FPM
- Disc Diameter: 6″
- Disc Speed: 2,000 to 4,000 RPM
- Belt Position: Horizontal or vertical
- Worktable Tilt Range: 0 to 45
- Disc Attachment Type: Peel and stick
- Warranty: 2 years
Comes With
- BBSD436 belt and disc sander
- Worktable
- Mitre gauge
- Table lock knob
- Flat washer
- Belt backstop
- 2 hex bolt assemblies
- Hex wrench
- Instruction manual
FAQ
What sanding surfaces are included on the BBSD436?
The sander includes a 4″ x 36″ sanding belt and a 6″ sanding disc.
Can the sanding speed be adjusted?
Yes. The machine provides variable-speed operation from 2,000 to 4,000 RPM.
Can the belt be used vertically and horizontally?
Yes. The belt arm can be adjusted for either horizontal or vertical sanding.
Does the worktable tilt for angled sanding?
Yes. The worktable adjusts from 0 to 45 and can be used with either the belt or disc station.
What is the sanding belt speed range?
The belt operates from 1,060 to 2,110 feet per minute.
Can the sander connect to a dust collection system?
Yes. It includes an integrated dust outlet for connection to a compatible dust collection setup.
How are sanding belts changed?
A lever-release belt tensioning system helps make belt changes faster and easier.
What type of sanding disc does it use?
The disc station uses peel-and-stick sanding discs.
Does the sander include a safety feature?
Yes. The ON/OFF switch has a removable safety key to help prevent unauthorized use.
What warranty is included?
The BBSD436 is covered by a two-year warranty.
4″ x 36″ Belt & 6″ DiscDual Sanding Power in One Machine Tackle shaping, smoothing, and stock removal with both a wide 4″ x 36″ belt and precision 6″ disc. Perfect for edge sanding, end grain cleanup, and fine finishing in home shops and professional settings.
Vertical or Horizontal BeltSand Your Way
The adjustable belt arm easily tilts for vertical or horizontal sanding applications, giving you the flexibility to work on longer boards, curved profiles, and tight spaces with control and comfort.
Cast Base for Vibration-Free Stability
Heavy-duty construction and a solid cast base reduces vibration during operation, ensuring smoother finishes and better sanding accuracy.
Variable Speed Control20004000 RPM
Fine-tune performance with adjustable speed control for softwoods, hardwoods, and delicate finish work.
Disc Speed: 20004000 RPM
Belt Speed: 10602110 FPM
120V, 60Hz, 3A Motor
Integrated Dust Port & 045 Table Adjustment
Connect to your dust collection system for a cleaner workspace while the adjustable worktable tilts from 0 to 45 for accurate angle sanding on both belt and disc.
Compact Benchtop FootprintBig Performance
Designed for space-conscious workshops, this powerful benchtop unit delivers professional sanding capability without sacrificing valuable shop space.
Precision Sanding from Every Angle
The belt station adjusts smoothly for customized positioning, allowing you to handle a wide range of material sizes and sanding tasks with improved control.
Complete SetupReady to Sand
Includes:
Adjustable Worktable
Miter Gauge
Belt Backstop
Hex Bolt Assemblies & Wrench
Instruction Manual
Built-In Safety Key Switch
Backed by a 2-Year Warranty for confidence in every project
