Specifications
- Ship Weight : 0.18 LBS.
- Height (in) : 2
- Length (in) : 20
- Psi : 375 PSI open/265 PSI close
- Voltage (V AC) : 24/120/240 V
- Width (in) : 1

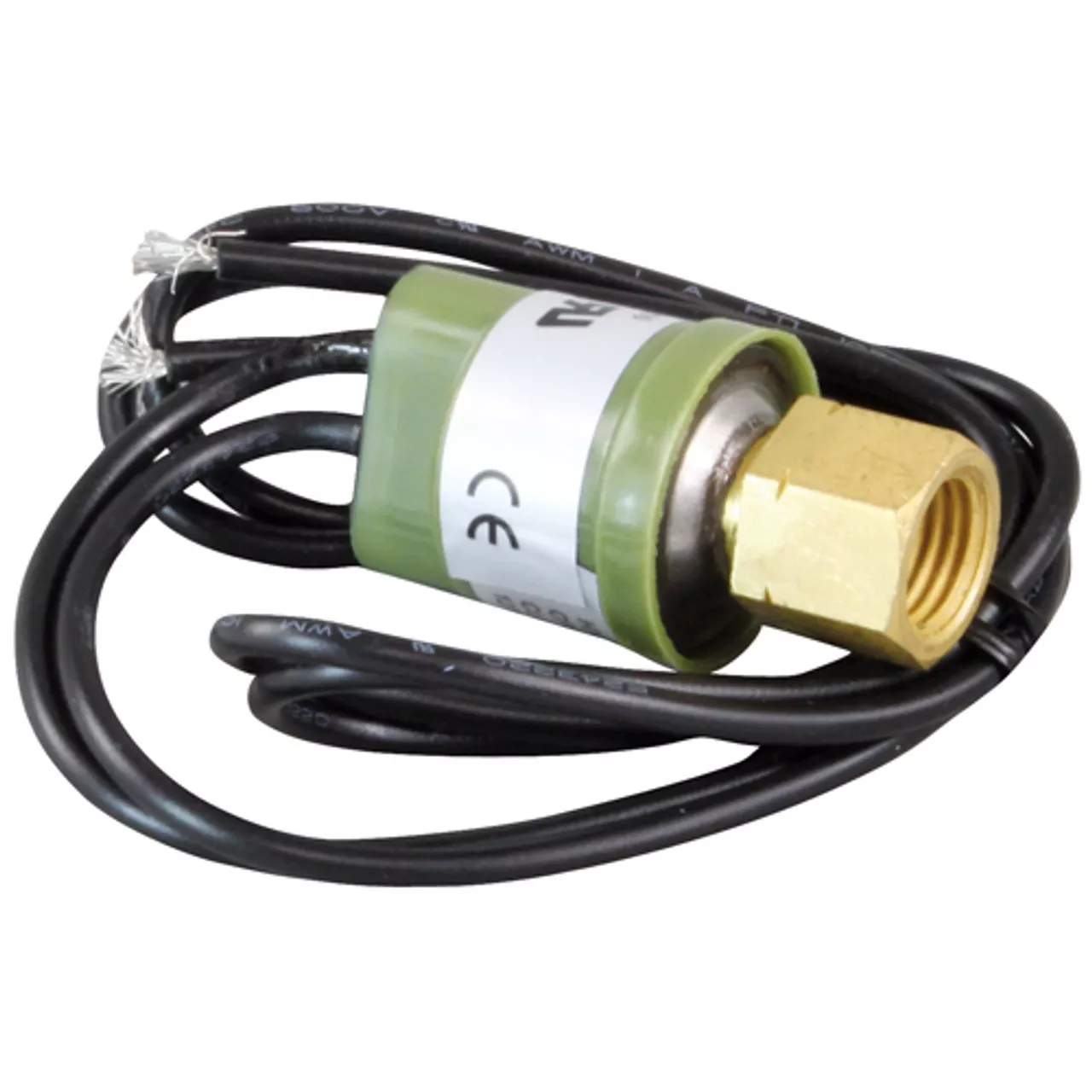

DescriptionAutomatic Reset High, Low & Condenser Fan Cycling PressureSwitches.HIGH PRESSURE OPEN 375 PSI, CLOSE 265 PSI, +/- 15 PSIHigh pressure SPST open on pressure riseLow pressure SPST open on pressure fallCondenser fan cycling SPST open on pressure fall.1/4″ female SAE connectionSnap acting SS hermetically sealed sensor (SHP, SLP & SFC)Small size and light weight for direct mountingExcellent set point repeatability/stabilityPressure range: 0 to 650 PSI, Burst pressure: 5000 PSILife @ rated load: 100,000 cyclesRated voltage: 50/60 Hz., 24/120/240 V (6 RLA, 36 LRA)Temperatures: ambient 20°F to 176°F (-30°C to 80°C)Fluid 60°F to 250°F (-50°C to 120°C)
