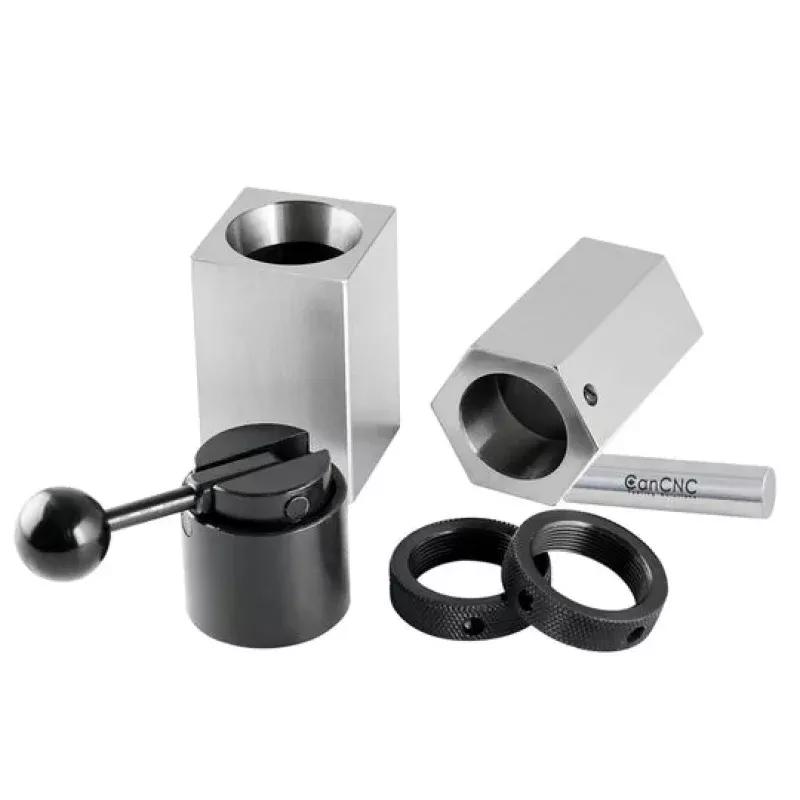

5pc Collet Block Set 5C
- Designed for the popular 5C round,hex or square collet.
- An effective short run jig for machining parallel,square or hex shapes as well as cross hole drilling at 60, 90 or 120.
- Blocks can be held directly on a magnetic chuck or in a machine vise.
- Each block weighs 1 lb.and dimensions area approximately 1-3/4″ x 1-3/4″ x 2-3/4″ long.
- Capacity:1/16″ thru 1-1/8″
- Made of high quality tool steel,hardened.
- Precision ground, ground, parallel and square to within 0.0005″.
- Set consisting of 1 square,1Hex,and 1 collet closer,
- ( Collet not included. )
Accusize 2250-2080
