Features:
- Mill Size: 9″ X 49″
- Travel: 14” x 36”
- Overall Length of Scale: 19” x 40”
- Voltage 90V-240V
- Power DC 5v (15%) 80 MA
- Two mounting brackets are each located at either end of the scale
- Resolution selection: 0.0002″/0.005mm
- Zero setting
- Half calculating, locating workpiece center
- Inch/Metric conversion and INC/ABS conversion
- Diameter/radius selection
- Simple & Smooth “R” function
- Divide the perimeter of circle (Bolt Circle Drilling)
- Hole Drilling Along An Oblique Line
- Save 200 work piece zero points
- Angular Surface Processing
- Progressive Processing of Rectangular Inner Chamber
- To reach objective values stop
- Cone measure
- Number percolate
- Takes 16 bits & 32 bits CPU technology
- 200 cutlery memory
- Power failure memory
- KA-300 series small size encoder

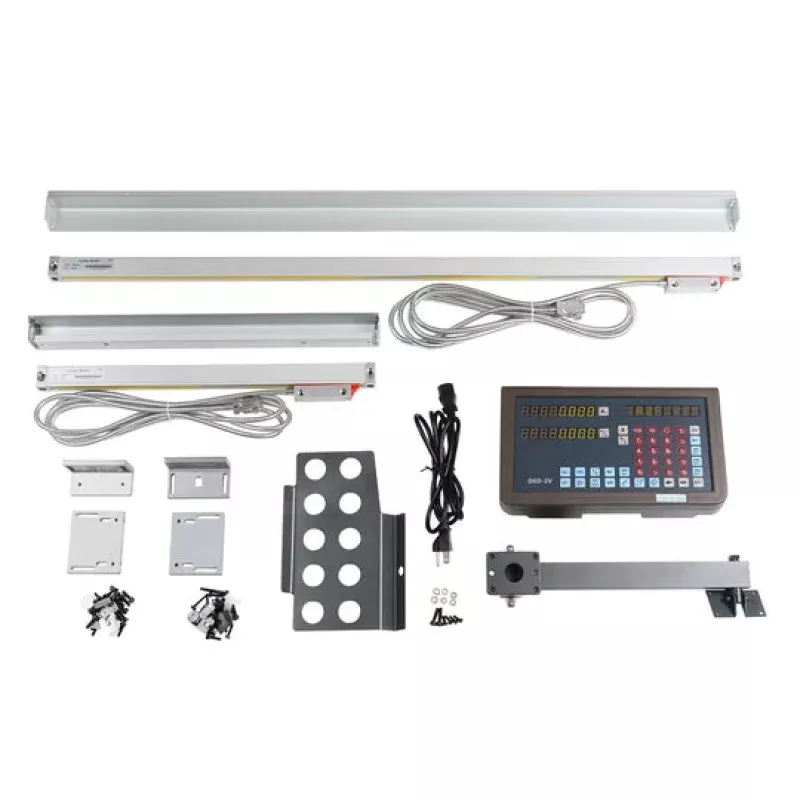

- All mounting hardware
- 1 standard DRO Counter
- 2 Linear glass scales, cross slide scale is slim style model
- Operating manual
- Resolution 0.0002″/0.005mm
- Max. response speeds: 47 in./sec.
- Aluminum outside case with double rubber seals
- Over 10″ connecting cable
- IP53 Liquid & Particle resistance
01/25
SINS-1003
Accusize
