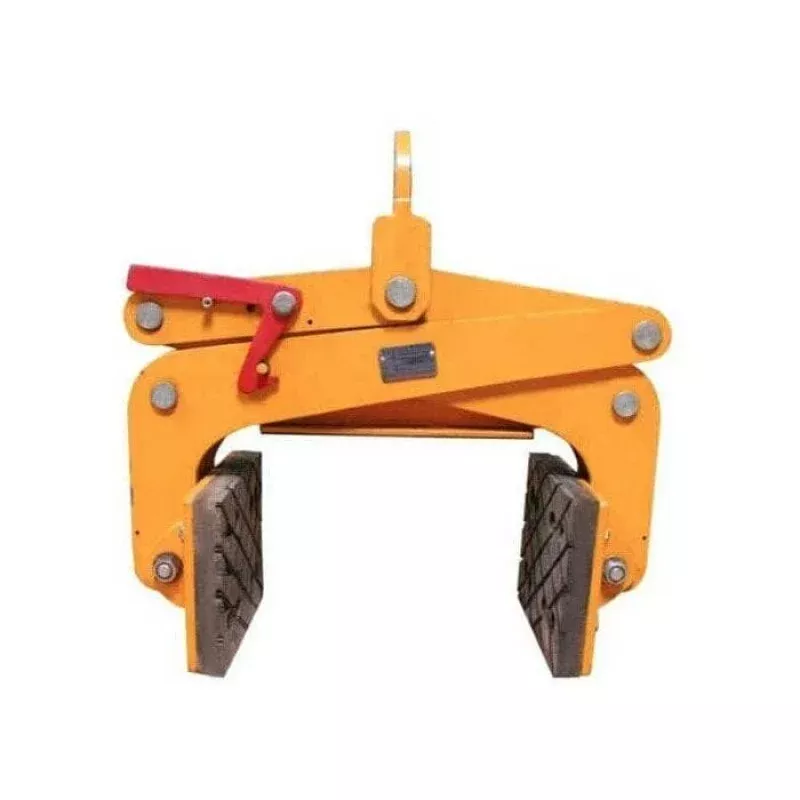

Abaco Scissor Clamp 350 for moving stone slabs, concrete, blocks, and more! (SC350 is currently unavailable due to redesign. The SC350AL automatic version is available as an alternative.)
Abaco Scissor Clamp 360 is a lifter for clamping and moving stone slabs. Abaco Machines makes several stone lifting clamps all with different lifting capabilities. The scissor lifting clamp comes with rubber pads making it safe to move the stone throughout the shop.
- Durable, fully vulcanized rubber pads.
- All natural rubber provides a better grip.
- Protected rubber across the jaws prevents chipping.
- Swivel Eye and Bow Shackle included.
- Replacement pads available
Abaco Scissor Clamps Comparison Chart
Model
SC100AL-M2
SC100
SC150
SC350
SC400
Length
In (mm)
21 1/4
(540)
21 5/16
(542)
23 1/4
(590)
22 5/8
(575)
28 1/8
(715)
Width
In (mm
7 1/16
(180)
7 1/16
(180)
9 13/16
(250)
9 13/16
(250)
7 1/16
(180)
Height
In (mm)
15 3/4
(400)
15 3/4
(400)
17 5/16
(440)
20 1/2
(520)
18 7/8
(480)
Grip Range
In (mm)
(3/8 ~ 3 15/16)
(10 ~100)
(3/8 – 3 15/16)
(10 – 100)
(1 3/16 – 5 7/8)
(30 – 150)
(5 7/8 – 13 3/4)
(150 – 350)
(7 7/8 – 15 3/4)
(200 – 400)
Net Weight
lbs (kg)
46.2
(21)
46.2
(21)
70.4
(32)
125.4
(51)
103.4
(38)
W.L.L.
lbs (kg)
2860
(1300)
2800
(1300)
3300
(1500)
3520
(1600)
2420
(1100)
