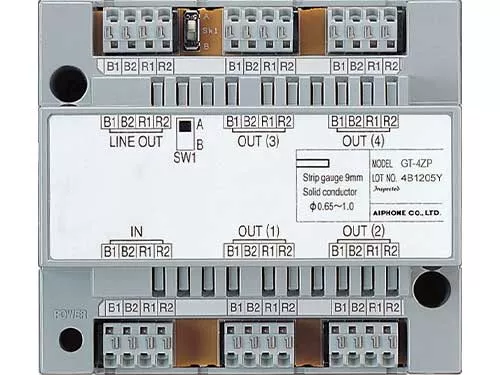

4-Way Video and Power Distribution adaptor
The GT-4ZP allows one PS-2420UL to power up four GT-1C7W app-enabled tenant stations. The GT-4ZP replaces existing GT-4Z adaptors in a standard GT system, and requires 1 PS-2420UL per GT-4ZP. Each GT-4ZP includes 4 power jumpers (GTW-24J) that are to be installed on the GT-1C7W between the B1/B2 and +/- terminals, which provides power to the GT-1C7W without having to install a local PS-2420UL for each tenant station.
Specs
| Power: | 24V DC (One PS-2420UL per GT-4ZP) |
| Mounting: | W-DIN11 (not included) |
| Contents: | 1x GT-4ZP, 4x GTW-24J |
| Dimensions: | 4-1/4” H x 4-13/16” W x 2-3/8” D |
| Temperature: | 32-104° F (0-40° C) |
