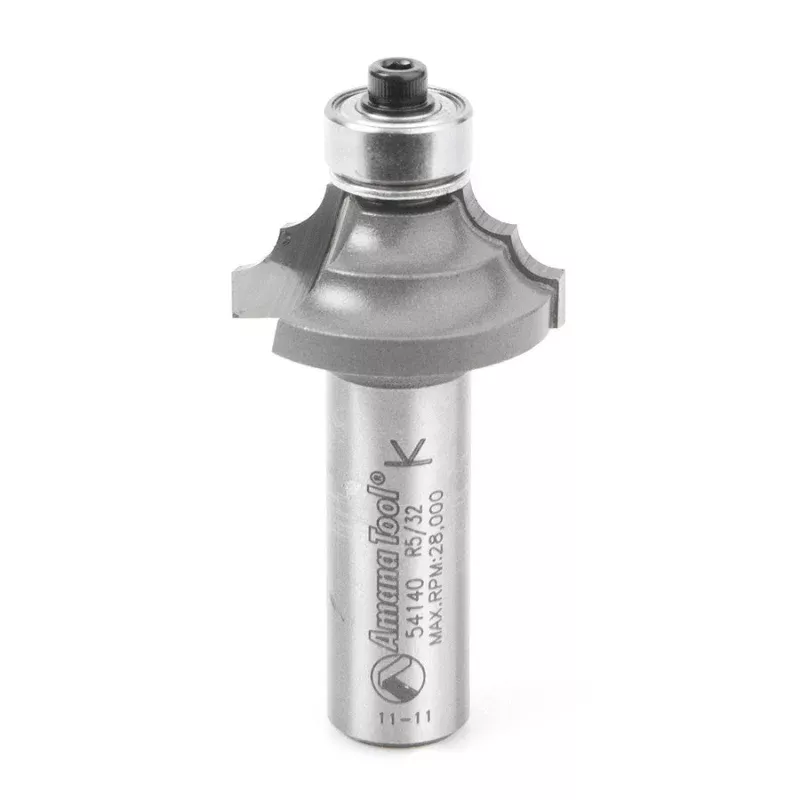

54140, Amana Carbide Tipped Classical Molding 5/32 Radius x 1-1/8 Dia x 1/2 x 1/2 Inch Shank
A double quarter-round profile is produced by this tool. The depth-of-cut setting determines whether or not a fillet is formed at the top. Switching from the standard pilot bearing to the optional 3/8″ bearing introduces a fillet at the bottom of the profile. Use in a handheld or table-mounted router.
Specifications:
- Tool No. 54140
- Diameter (D) 1-1/8
- Radius (R) 5/32
- Cutting Height (B) 1/2
- Shank (d) 1/2
- Overall Length (L) 2-3/8
- Replacement Bearing 47706
- Flutes 2
