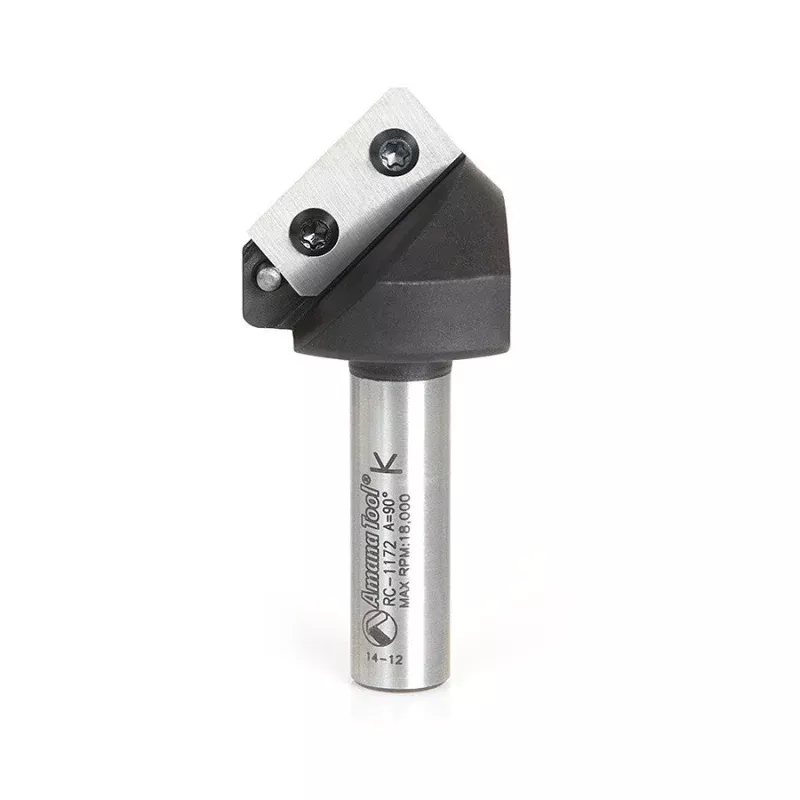

RC-1172, Amana V Groove 90 Deg. Double Edge Folding for Shaping Composite Panels, 0.090 Tip Width x 45/64 x 1-1/2 Dia. x 1/2 Inch Shank Solid Carbide Insert Knife
These bits are widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding the remaining material by hand.
Designed for cutting and scoring aluminum sandwich materials including:
- Aluminum, Clay, Zinc & Wood Composite Panels
- Aluminum Composite Materials (ACM)
- Aluminum Composite Panel (ACP)*
- ALPOLIC Copper Composite Material (CCM)
- Alucobond
- Alupanel
- Dibond
- Durabond**
- e-panel
- Etalbond
- Phenolics
- Plastic/Acrylic
- Plexiglas
- Titanium Composite Material (TCM)
- Wood
Specifications:
- Tool No. RC-1172
- (D) Diameter 1-1/2
- (a) Angle 90
- (B) Cutting Height 45/64
- (d) Shank 1/2
- Overall Length (L) 3
- a1 45
- B1 1
- Max RPM 18,000
- L1 1-3/4
- Flutes 1
- Feed Rate IPM 220″
- D1 0.090
- MAX RPM: 18,000
