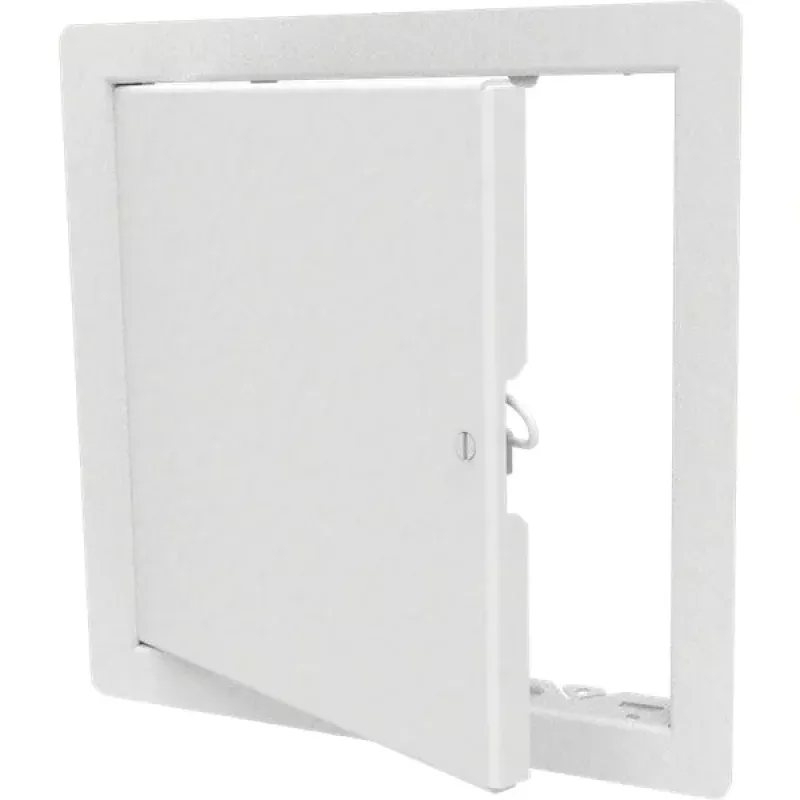

Architectural Access Door – 1 Flange

The Babcock-Davis Architectural Access Door is designed with the architect in mind.

Constructed with an industry-standard 16 gauge steel door, the updated design provides superior strength and design aesthetics.

Features

• Anti-flex frame
• Removable and repositionable door
• Painless installation
• Optional stainless steel
• Double door available
• Optional Louvers

Specifications

Model BNT/BNW/BNP Door

• BNT/BNW: 16 gauge Steel (removable) or 16 gauge Type 304 Stainless Steel
• BNP: 14 gauge Steel or 16 gauge Type 304 Stainless Steel

Frame 16 gauge Steel or 16 gauge Type 304 Stainless Steel Size Single Door

• Minimum: 6 inches by 6 inches
• Maximum: 24 inches by 72 inches or 48 inches by 48 inches

Double Door

• Minimum: 24 inches by 24 inches
• Maximum: 36 inches by 72 inches or 48 inches by 64 inches or 72 inches by 48 inches

Installation Wall or Ceiling Flange 1 inch exposed, Drywall Bead or Plaster Bead Hinge Concealed spring button or Flush continuous piano Pan Depth 1/2 inch Latch Screwdriver Cam Latch, Key Operated Cam Latch, or Mortise Lock (1-1/8 inch) Prep Finish White Powder Coat (steel) or 4 Satin (stainless steel) Warranty 1 year

Order Guide

BASE FLANGE LATCH WIDTH X LENGTH OPTIONS BN X T – 1 inch Flange
W – Drywall Bead
P – Plaster Bead C – Screwdriver Cam Latch
L – Key Operated Cam Latch
M – Mortise Lock Prep (1-1/8″) Standard Sizes (in.)
6 x 620 x 30
8 x 822 x 22
10 x 1022 x 30
12 x 1224 x 24
12 x 1824 x 30
12 x 2424 x 36
14 x 1424 x 48
16 x 1630 x 30
16 x 2030 x 36
18 x 1832 x 32
18 x 2436 x 36 B – Galvannealed
F14 – 14 gauge frame & door
L – Louvered Door
S – Type 304 Stainless Steel
D14 – 14 gauge door
D – Double door

Double doors are available (Some options may not be available)
Rough opening is door size + 1/4 inch
Additional sizes available, call for more information.
Lead Time Average is 1-10 Days. Delivery time is additional.
