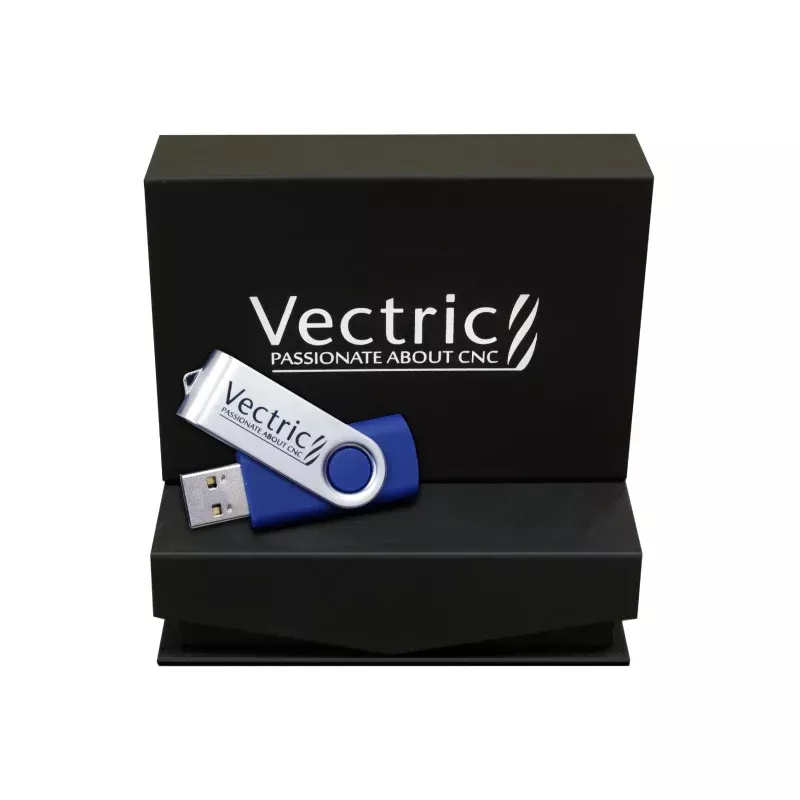

AVC308, Axiom Vectric VCarve Pro Software v11.x
VCarve Pro and VCarve Desktop provide a powerful but intuitive software solution for cutting parts on a CNC Router. There are tools for 2D design and calculation of 2D and 2.5D tool paths and along with the ability to import and toolpath a single 3D model (STL, OBJ, etc.). There is also support to import multiple Vectric Clip Art 3D models (V3M) to create 3D assemblies.
The software can import 2D designs from other programs but also provides a full set of drawing and editing tools. The toolpath options cover all typical 2D routing operations such as Profiling, Pocketing, Auto-Inlays, and Drilling as well as 2.5D strategies such as V-Carving, Prism carving, Fluting, and even a decorative Texturing strategy. For 3D you can Rough and Finish the model and there are options to project 2D and 2.5D tool paths onto the 3D surface. Each toolpath includes appropriate options to customize the settings and provide a high level of control for different types of operation. In addition, all tool paths can be previewed to show just how the part will look when it is actually cut, this allows instant feedback to allow tool paths to be further optimized.
Features:
- Two-Sided Machining & Multi-Sided 3D Simulation
- Complete set of 2D Design and Layout Tools
- Layer control, Guide lines, Snap Grid
- Text Editing + Single Line Engraving Fonts
- 2D File Import – DWG, DXF, EPS, AI, PDF
- Image File Import – BMP, JPG, TIF, GIF
- Single 3D File Import (STL, OBJ, 3DM, SKP, etc.)
- Import Multiple Vectric 3D Clip Art Files for Layout and Assembly (V3M file format)
- Includes 100+ 2D Clip Art Designs
- Includes 300+ 3D Clip Art Models
- Vectorize images to create vectors for machining
- Robust V-Carving
- Raised 3D Prism machining
- Moulding Toolpaths – to create constant cross-section profiles, arches, frames, etc.
- Auto-Inlays with multiple options
- 3D Random Texturing Toolpath
- 2D Profiling with Interactive Tabs / Bridges, Lead and Ramp options
- Pocketing with optimization for 2 cutters
- Drilling with option for Peck Drilling
- Beveled Letters
- Custom Molding and Form Cutters
- Multi-color Toolpath Previews
- Work on parts larger than 24″x24″ (600mm x 600mm)
- True Shape Nesting for material optimization
- Toolpath Templates
- Merge Toolpaths
- Job Setup Sheets
- Gadget (scripting) support
- Rotary Axis (Wrapping)
VCarve includes the functionality demanded by complex work while remaining incredibly easy to use and affordably priced. The software is used by cabinet makers, wood workers, sign makers, prop makers, plastic fabricators, hobbyists, and in many other applications.
