BuildPro 4 Fixture Table Vise, Fit 5/8 Holes

BuildPro 4″ Fixture Table Vise, Fit 5/8 Holes

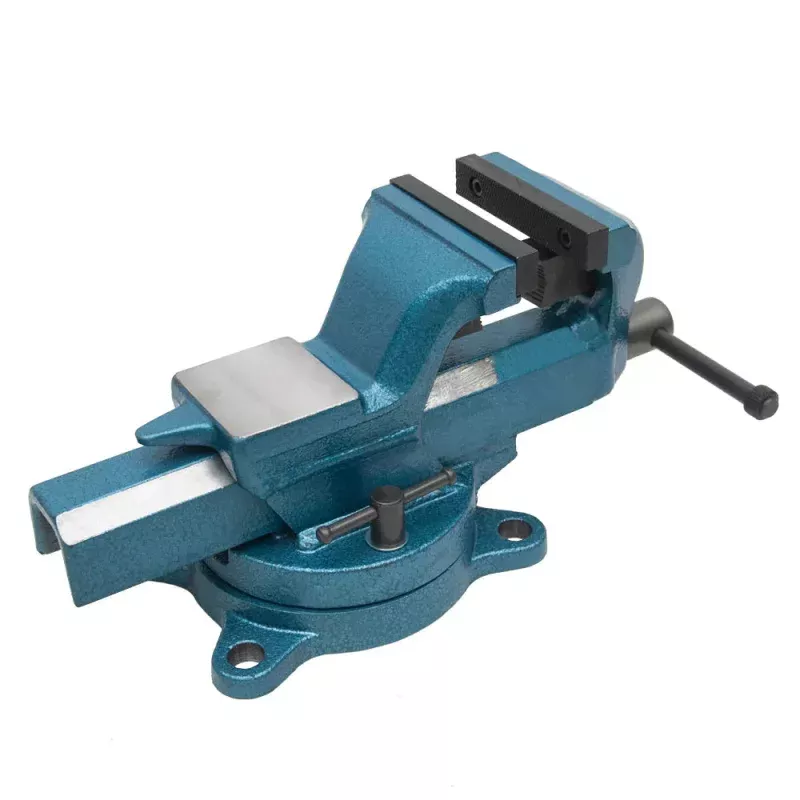

This forged steel 4 Bench Vise features a 360 swivel base, large machined anvil surface, and powder coated finish. Made of 90,000 PSI tensile strength forged steel. The swivel base is patterned to bolt directly to the table.

Rear jaw of the vise hangs over the edge of the table when mounted on the edge. Vise can also be mounted with Ball Lock Bolts for quick mounting and dismounting.

* Four Socket Shoulder Screws (PN: T831610) included.

* TXV5-4-K is NOT compatible with TXH8022

Part No. Jaw Width (in) Jaw Opening (in) Pipe Capacity (in) Throat Depth (in) Clamping Force (lb) Handle Dia. (in) Handle Length (in) Max Torque (ft/lb) Weight (lb) TXV5-4-K 4 5 0.5 ~ 2.0 2.9 5,000 0.435 7.125 118 20
