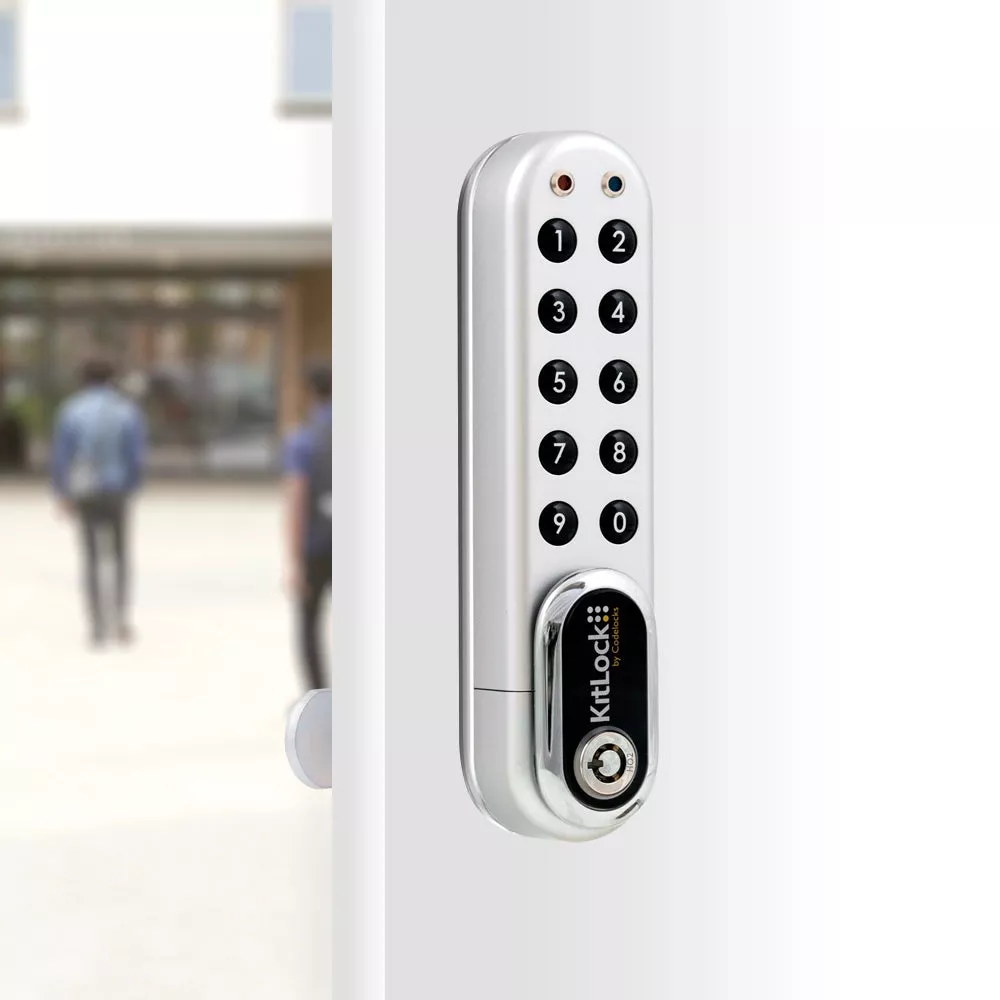

The KL1000 G3 is a compact digital lock offering key override, front battery change, 24hr countdown timer* and up to 20 User Codes.
Applying advanced technology to our core products.
Introducing the KL1000 G3; designed through the evolution of our best-selling KitLock, the KL1000. Boasting all popular features from the KL1000 Classic+ including 20 User Codes and 24hr countdown timer1, and introducing key override.
KitLock by Codelocks is a convenient alternative to traditional locks and keys suitable for a wide range of cabinet and locker applications. The KL1000 G3’s key override and front battery change capabilities provide ease of use and peace of mind. The updated chrome effect back panel and handle finishes reflect their surroundings giving the lock a slimmer, more subtle aesthetic.
Sharing the same fittings & fixings as the KL1000 KitLock this lock is easily retrofitted, ideal for upgrading existing installations with increased flexibility and convenience for both guests and staff.
Key Features
- Easy install
- Easy retrofit for existing cam locks
- Front battery change
- Key Override
- Battery Override
- Private and Public Functions
- Up to 20 User Codes
- Auto-unlock after a set time
- Slam latch accessory available
- Black Chrome / Silver Chrome finishes
Key Override
Allows key holders to access the locker in the event of a forgotten code or an emergency. Override key available separately.
Front Battery Change
The KL1000 G3 battery compartment can be accessed via the front of the lock. Entering a valid code and turning the handle reveals a security screw which, once removed, allows the cover to slide up and batteries to be replaced.
24hr Auto-Unlock Countdown Timer
When operating in Public Function, the KL1000 G3 can be programmed to auto-unlock between 1 and 24 hours after locking1, saving valuable locker management time.
Up to 20 User Codes
The KL1000 G3 offers up to 20 unique 4 digit User Codes when operating in Private Function, thus allowing a single cabinet to be accessed by multiple users.
Private Function
This function is used where the same code will be repeatedly used, e.g. an employee with the same locker/drawer in the workplace.
Public Function
This is the default function and is already pre-programmed in new locks. In this function the KitLock operates with a single User Code. The user enters a personal four digit code, this locks the lock. The same code is entered once only to open the lock before automatically being erased and ready for the next user. This function is used for short term, multiple occupancy applications, e.g. hot desking in an office or a locker in a sports club.
Watch the video introducing the KitLock KL1000 G3 locker lock.
For Electronic KitLock Spares please click here.
If this product is out of stock, you are looking to place a large order or have any special requirements please contact us here.
Technical Specs
- Battery OverrideA 9 volt PP3 battery can be placed against external contacts
- BrandKitLock by Codelocks
- Buttons2 x 5 + Programming
- Code Change MethodKeypad (On Door)
- Codes8-digit Master and Sub-Master Code, 6-digit Technician Code, 20 4-digit User Codes
- Countdown TimerOpen after X hours
- Door ThicknessReady to fit doors up to 25mm (1″)
- FinishBlack Chrome,Silver Chrome
- FunctionPrivate, Public
- IP RatingIP54 when fitted with gasket (IP55 available for special order)
- Latch TypeCam, Slam Latch
- Lock Dimensions5 3⁄8″ (136mm) x 11⁄16″ (28mm) x 15⁄16″ (33mm)
- Lock MaterialMixed Plastic and Alloy
- Low Battery WarningRed LED will flash on opening to indicate low battery
- OperationsUp to 100,000 operations per 2 x AAA batteries
- OrientationVertical, Left Handed, Right Handed
- Power2x AAA
- SpindleFitted with 15⁄16″ (24mm) spindle as standard, optional 3⁄8″ (10mm) and 11⁄8″ (29mm) spindles supplied
- Suitable ForInternal, External
- User LevelsMaster, Sub Master, Technician, User
- User TypesCode
Installation Instructions
Before Installation
Before installing the lock, load the batteries and familiarise yourself with the Programming and Operating Instructions.
