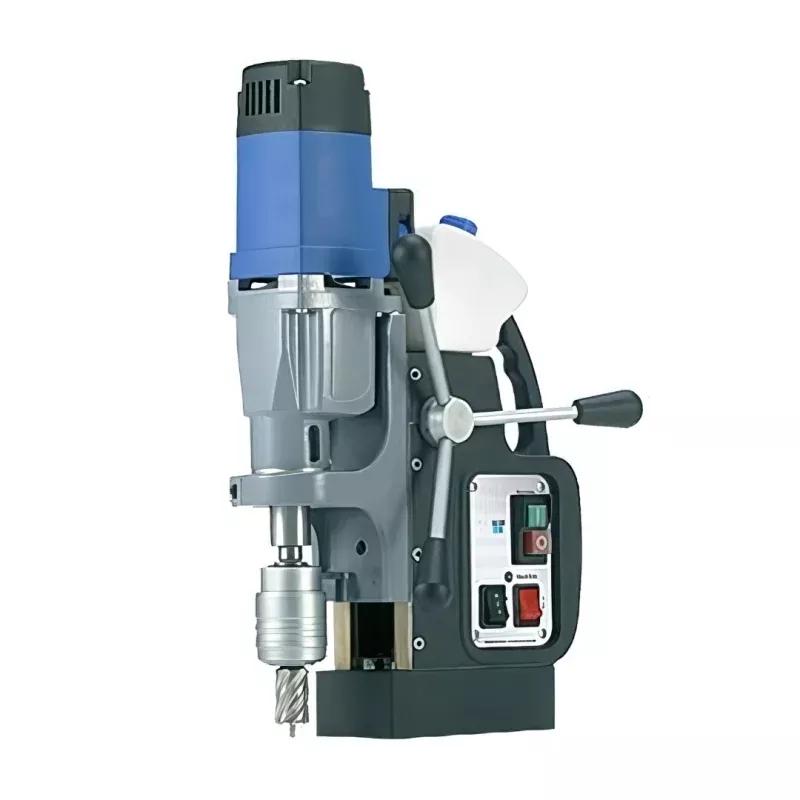

CS Unitec MAB 485 Portable Magnetic Drill

CS Unitec MAB 485 Portable Magnetic Drill

Powerful, Compact 2-1/16″ Magnetic Drill

Features:

• Powerful and reliable
• Quick-change keyless cutter system
• Integrated cutting oil reservoir
• Automatic internal lubrication

Items Included:

• 1 Magnetic drilling machine
• 1 Quick-change arbor system KEYLESS Weldon 3/4″
• 1 Manual arbor with set screws, Weldon 3/4″, MT2
• 1 1/2″ Geared Chuck (MT2)
• 2 Pilot pins – 1″ and 2″ depth
• 1 Safety chain
• 1 Drift key MT2 (Order No. 1960002)
• Tap collet adapters -1/4″, 3/8″, 1/2″ and 3/4″
• 1 Warranty certificate
• Standard Equipment also includes molded plastic carrying case, operating manual, auto lubrication, safety strap, carabin hook and allen keys.

Specifications:

Motor Power 10.5 Amp / 110 Volt Weight 29 lbs. Stroke 6-1/3″ Hole Capacity 2-1/16″ dia. Twist Drill Capacity 7/8″ dia. Tapping Capacity 15/16″ Speeds 50-250 and 100-450 RPM Variable Magnet Base Size 6-5/8″ L x 3-1/3″ W Dimensions 17-1/4″ H x 11-5/8″ L x 7″ W Magnetic Force (1″ Plate) 3,750 lbs. Arbor Bore 3/4″ Weldon Shank Automatic Lubrication Included
