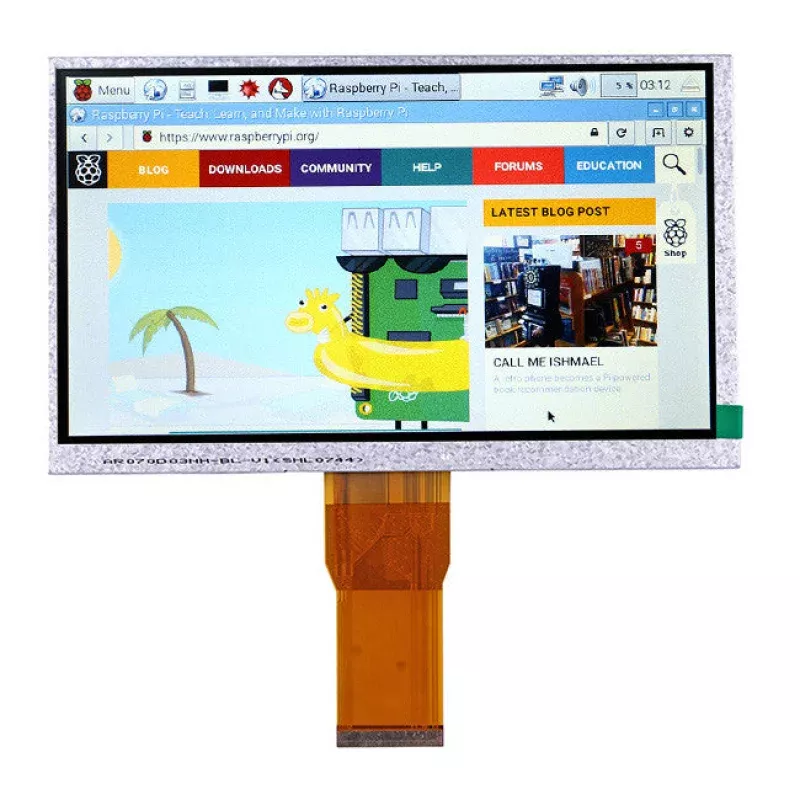

[Discontinued] 7 TFT LCD Display for Raspberry Pi & Driver Board Bundle

SPECIFICATION

Display Size 7 inch Resolution 800*480 Touchscreen No Power Supply 5V DC Supports Raspberry Pi Raspbian, Ubuntu, Windows 10 IoT Input Interfaces HDMI, VGA, 2AV

Shopping guide for Raspberry Pi LCD displays

Part Number Resolution LCD Panel Use Dimension (mm) Touch Panel Type Feel Feature 2.8inch RPi LCD (A) 320×240 I/O I/O Pi As the Pi 3B Resistive Low cost 3.2inch RPi LCD (B) 320×240 I/O I/O Pi As the Pi 3B Resistive Low cost 3.5inch RPi LCD (A) 320×480 I/O I/O Pi As the Pi 3B Resistive Cost effective 3.5inch RPi LCD (B) 320×480 I/O I/O Pi As the Pi 3B Resistive IPS screen 4inch RPi LCD (A) 320×480 I/O I/O Pi 9461 Resistive IPS screen 5inch HDMI LCD 800×480 HDMI I/O Pi 121 x 78 Resistive Low cost 5inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 121 x 76 Resistive Supports various systems 7inch HDMI LCD 1024600 HDMI I/O Pi 165107 Resistive IPS screen 7inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 165 x 107 Capacitive Supports various systems 8 inch HDMI LCD 1280X800 HDMI USB Not only Pi 161 X 106 Capacitive IPS screen 9inch HDMI LCD 800×480 HDMI I/O Pi 235144 Resistive Cost effective 10.1inch HDMI LCD (H) 1024×600 HDMI USB Not only Pi 257 x 162 Capacitive Supports various systems

INSTALLATION

WHAT’S IN THE PACKAGE

• 1x HDMI+VGA+2AV Controller Board VS-TY2662-V1
• 1x 7 inch 800* 480 LCD Panel CLAA070 without Touch Screen
• 1x USB Controller Card

RESOURCES

• Win32DiskImager
• Putty
• Panasonic_SDFormatter
• ImageDownload
• Drivesxinput_calibrator-0.7.5.tar
• DrivesXP-win7-win8-drive
