Name: [Discontinued] New QL200 PIC Microchip MCU Development Board & USB Programmer Kit 1602 LCD ICD
Brand: hotfixhardwareus.com
SKU: SVRETIRED36986
Price: 64.06 USD
Availability: InStock

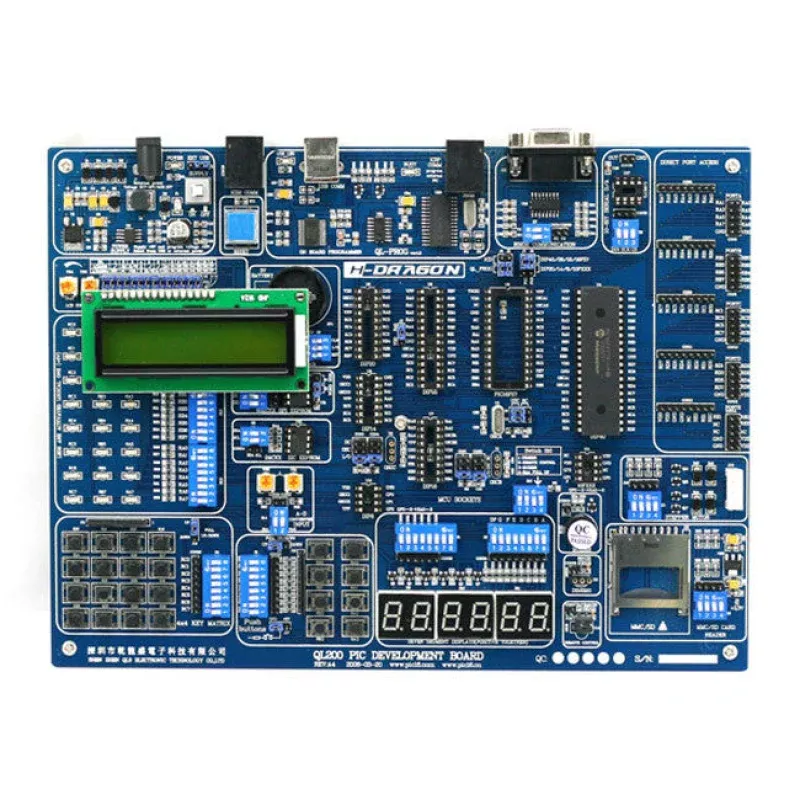

QL200 is an integrated demo system for study and development of PIC Microcontroller, which is provided with four functions of experimental instrument, programmer, simulation interface and ICSP download cable. Enclosed with control CPU and combined with programming software which has independent intellectual property rights, the system is able to support over 90 percent of the experiments and development practices of PIC Microcontroller.

To easily study and develop all series of PIC Microcontroller’s, only a set of QL200 demo system and a computer are needed. Based on programming functions, abundant on-board hardware resources, flexible expansion, free resource distribution, and ICSP download function for customer target board, QL200 can not only satisfy the demands of a beginner in Microcontroller study, but also meet the requirements of engineers in development of Microcontroller. In addition to a study & experimental board, QL200 is also a demo board of Microcontroller integrated with multiple resources.

RS-232 communicationfor connection with a PC or any other device with a DB9 connector.(use DuPont wire can be connected to the arbitrary I/O port)

24LEDsare provided.

to connect optionally with the port RA, RB and RC of Microcontroller for indication of output high/low level at I/O port.(use DuPont wire can be connected to the arbitrary I/O port)

4*4 Matrix keyboard

to test password lock and other items.(use DuPont wire can be connected to the arbitrary I/O port)

8-buttonsare providedfor easy various key-press input experiments and jumper setup for pull-up or pull-down of port hardware.(use DuPont wire can be connected to the arbitrary I/O port)

2 Potentionmetersfor simulating analog voltage input.(use DuPont wire can be connected to the arbitrary I/O port)

PIC Microcontroller chip socket

including 8PIN, 14PIN, 18PIN, 20PIN, 28PIN, 40PIN, PIC10 series, and PIC16F57 special socket.(including PIC10XX,PIC12XX,
PIC16XX,PIC18XX socket)

DS1302 clock

enclosed with memory capacity.(use DuPont wire can be connected to the arbitrary I/O port)(Battery is not included)

ICD2 connectorfor customers who want to use it.

IIC (I2C)communication

to read/write24CXXseries chips with hardware IIC or software IIC directly.(use DuPont wire can be connected to the arbitrary I/O port)

SPI communication

to read/writeEEPROM of 93CXXwith hardware SPI or software analog SPI,to select 8-bit or 16-bit read/write method through jumper.(use DuPont wire can be connected to the arbitrary I/O port)

Serial 10-bit voltage DA converter

TLC5615 chip, direct digital-to-analog converter, on-board analog output interface.(use DuPont wire can be connected to the arbitrary I/O port)

Digital thermometer DS1820for measuring temperature from -55C to 125C.(use DuPont wire can be connected to the arbitrary I/O port)

Infrared remote-control receiver

to practice infrared remote-control decoding and all kinds of infrared remote control.(use DuPont wire can be connected to the arbitrary I/O port)

Buzzer voice/PWMoutput experiment

to practice normal voice, music and PWM output sound.(use DuPont wire can be connected to the arbitrary I/O port)

Clock selection

jumper for switch between various oscillation modes, to replace crystal vibration of different frequency as required by development of product.

All pins are taken out onIDC10 connectorsto make them available for further connections.

Stepper motordriver circuit(remark: Setpper motor is optional).(use DuPont wire can be connected to the arbitrary I/O port)

MMCSD cardslot – For MMCSD memory cards. Used for data acquisition.(remark: MMCSD card is optional).(use DuPont wire can be connected to the arbitrary I/O port)

On-board programming module

to communicate with computer through USB, adaptable for any kind of computer, special CPU supervision, stable programming, enclosed with ICSP interface and ICSP download cable, convenient on-line programming for other target board, programming control software with independent intellectual property rights, all functions of professional programmer.

On-board power module

Power Supply select-USB or external. Also there is a switch for turning on/off system.can connect to the polarity of external AC or DC power supply optionally, voltage range 7-12V, current over 200MA; available for supply through USB without external power,

1602-character LCD

internal 5*7 lattices, to display 16*2-character.(use DuPont wire can be connected to the arbitrary I/O port)

6bit 7-segmentdigital tube

to realize dynamic or static display experiment of digital tube, to display clock,temperature or to make counter.(use DuPont wire can be connected to the arbitrary I/O port)

Characteristics:

Abundant on-board resources:LED, digital tube, key-press, keyboard matrix, character LCD, graphic LCD, A/D converter, D/A converter, SPI & IIC communication, USART serial communication, DS18B20 digital temperature measurement, DS1302 clock, infrared remote control encoder, voice program and etc.
Full combination of PIC chips available for programming supporting and experiment development:on-board chip socket for PIC Microcontroller of 8PIN, 14PIN, 18PIN, 20PIN, 28PIN, and 40PIN, on-board PIC10 series, PIC16F57 chip socket, jumper for selection of various oscillation modes, auto-replacement of crystal oscillation of different frequency.
Open modular design:All modules can be on/off controlled by DIP switch. Each module is designed to connect to I/O port of Microcontroller. Connection of module with any port of Microcontroller is conveniently achieved through dupont thread. Connection to preset port is available by using DIP switch without dupont thread. All I/O ports are open externally with output socket. Expansion is easily accomplished.
Perfect examples:Each module is equipped with at least one detailed example from easy ones to complicated ones. Beginners are enabled to master all types of programming step by step.
Powerful on-board programming system:Programming over 90 percent of PIC Microcontroller’s. Enclosed with ICSP download cable. Direct ICSP programming for Microcontroller of external target board.
On-board simulation debugging interface:direct connection to ICD1/ICD2/MCD1/MCD2 in circuit debugger.
Powerful programming control software:Programming control software has entire independent intellectual property rights and covers all operating functions of programmer, with the following characteristics

Compatible for operating systems including Windows 98, Windows 2000/NT, Windows XP and Windows 2003;
Programming interface in English and Chinese, on-line help system, convenient for user operation;
Programming counting function of software;
Serial number auto-increment function;
Voice indication during programming;
Auto-inspection of programming hardware, auto-inspection of software and setup of programming hardware during start-up, operation without manual setup;
Monitoring of programming data; Based on check summing, available to find immediately if programming data is changed or not. Formula of checksum is subject to definition of Microchip;
Read the content in chip programming area easily;
Program supports *.HEX or *.BIN files;
Fill function of buffer;
Auto-protection of calibration value of chip clock against erasion;
Directly program the BIN files obtained from decoding of Microcontroller without making any setup.

In addition to above characteristics,many humanized functions are designed in the development of QL200,For examples:

Over-load protection function:When there is over load in the demo system, the protection system will automatically start to avoid any damage of elements. After fault is corrected, the board will recover to work.

Auto-load of changed file function:To achieve seamless integration with MPLAB IDE and other development software, the changed current target code is inspected automatically and then is transferred into the updated file automatically. This function offers great convenience for study and development, which avoids the trouble in repeating load of target code.

Function to identify the figuration bit and EEPROM in the file automatically:When we write the configuration bit information and EEPROM data in the program, otherwise setup is not needed for programming. This function saves much time for regular change in program debugging and avoids the setup requirement for each program change.

On-board CPU on-line upgrade function:It is available to download the updated programming software and run to upgrade hardware, which will upgrade on-board CPU to the updated version so that it can support more new devices.

QL200 can support the following devices for programming and experimental development:

PIC10FXX

PIC10F200

PIC10F202

PIC10F204

PIC10F206

PIC10F220

PIC10F222

PIC12XX

PIC12C508

PIC12C508A

PIC12C509

PIC12C509A

PIC12C671

PIC12C672

PIC12CE518

PIC12CE519

PIC12CE673

PIC12CE674

PIC12F508

PIC12F509

PIC12F629

PIC12F635

PIC12F675

PIC12F683

PIC12F615

PIC12HV615

PIC16XX

PIC16C505

PIC16C554

PIC16C558

PIC16C61

PIC16C62

PIC16C62A

PIC16C62B

PIC16C62A

PIC16C62B

PIC16C63

PIC16C63A

PIC16C64

PIC16C64A

PIC16C65

PIC16C65A

PIC16C65B

PIC16C66

PIC16C66A

PIC16C67

PIC16C620

PIC16C620A

PIC16C621

PIC16C621A

PIC16C622

PIC16C622A

PIC16C71

PIC16C72

PIC16C72A

PIC16C73

PIC16C73A

PIC16C73B

PIC16C74

PIC16C74A

PIC16C74B

PIC16C76

PIC16C77

PIC16C710

PIC16C711

PIC16C712

PIC16C716

PIC16C745

PIC16C765

PIC16C773

PIC16C774

PIC16C83

PIC16C84

PIC16F505

PIC16F506

PIC16F54

PIC16F57

PIC16F627

PIC16F616

PIC16HV616

PIC16LF627A

PIC16F627A

PIC16F628

PIC16F628A

PIC16LF628A

PIC16F630

PIC16F636

PIC16F639

PIC16F648A

PIC16F676

PIC16F683

PIC16F684

PIC16F685

PIC16F687

PIC16F688

PIC16F689

PIC16F690

PIC16F716

PIC16F72

PIC16F73

PIC16F74

PIC16F76

PIC16F77

PIC16F737

PIC16F747

PIC16F767

PIC16F777

PIC16F785

PIC16F83

PIC16F84

PIC16F84A

PIC16F87

PIC16F88

PIC16F818

PIC16F819

PIC16F870

PIC16F871

PIC16F872

PIC16F873

PIC16F873A

PIC16F874

PIC16F874A

PIC16F876

PIC16F876A

PIC16F877

PIC16F877A

PIC16F913

PIC16F914

PIC16F916

PIC16F917

PIC16F883

PIC16F884

PIC16F886

PIC16F887

PIC18FXX

PIC18F242

PIC18F248

PIC18F252

PIC18F258

PIC18F442

PIC18F448

PIC18F452

PIC18F458

PIC18F1220

PIC18F1320

PIC18F2220

PIC18F2221

PIC18F2320

PIC18F2321

PIC18F2331

PIC18F2410

PIC18F2420

PIC18F2431

PIC18F2450

PIC18F2455

PIC18F2480

PIC18F2510

PIC18F2515

PIC18F2520

PIC18F2525

PIC18F2550

PIC18F2580

PIC18F2585

PIC18F2610

PIC18F2620

PIC18F2680

PIC18F4220

PIC18F4221

PIC18F4320

PIC18F4321

PIC18F4331

PIC18F4410

PIC18F4420

PIC18F4431

PIC18F4450

PIC18F4455

PIC18F4480

PIC18F4510

PIC18F4515

PIC18F4520

PIC18F4525

PIC18F4550

PIC18F4580

PIC18F4585

PIC18F4610

PIC18F4620

PIC18F4680

Package List:
QL200 PIC DEVELOPMENT Board +
USB cable
ICSP cable
RS232 Cable
16F877A Chip
1602 LCD with Yellow backlight
CD-ROM or USB Flash disk(Programmer Driver , English version PDF User manual ,QL200 Layout,QL200 Board Schematic , Sample code (C / ASM) , MPLAB 7.50 .)
Compatible for OS including Windows 98, Windows 2000/NT, Windows XP , Windows 2003 and Vista
Dupont thread expansion connection 20x wire
10-bit D/A converter TLC5615 (DIP8 package) *1
DS18B20 ( DS1820 ) Temperature Sensor(TO-92 package) *1
