[Discontinued] UDB1002S Function Signal Generator Source Frequency Counter DDS Module Wave 2MHz

SPECIFICATION

• Frequency range: 2MHz
• Resolution: 0.01Hz
• Output waveforms: Sine wave, Square wave and Triangle wave
• Output amplitude: 10Vp-p(signal output,no load)
• Output impedance: 5010%(signal output)
• DC offset: 2.5V(no load)
• Display: LCD1602
• Frequency Stability: 110-6
• Frequency accuracy: 510-6
• Sine wave distortion: 0.8% (reference frequency is 1kHz)
• Triangle linearity: 98% (0.01Hz~10kHz)
• Rise and fall time of square wave: 100ns
• Square Wave Duty range: 1%~99%
• Amplitude:>3Vp-p
• Fan Out:>20 TTL loads
• Counter Range: 0-4294967295
• Frequency Meter Range: 1Hz~60MHz
• Input Voltage Range: 0.5Vp-p~20Vp-p
• Save and Load Parameter: 0-9(0 is default load)

WHAT’S IN THE PACKAGE

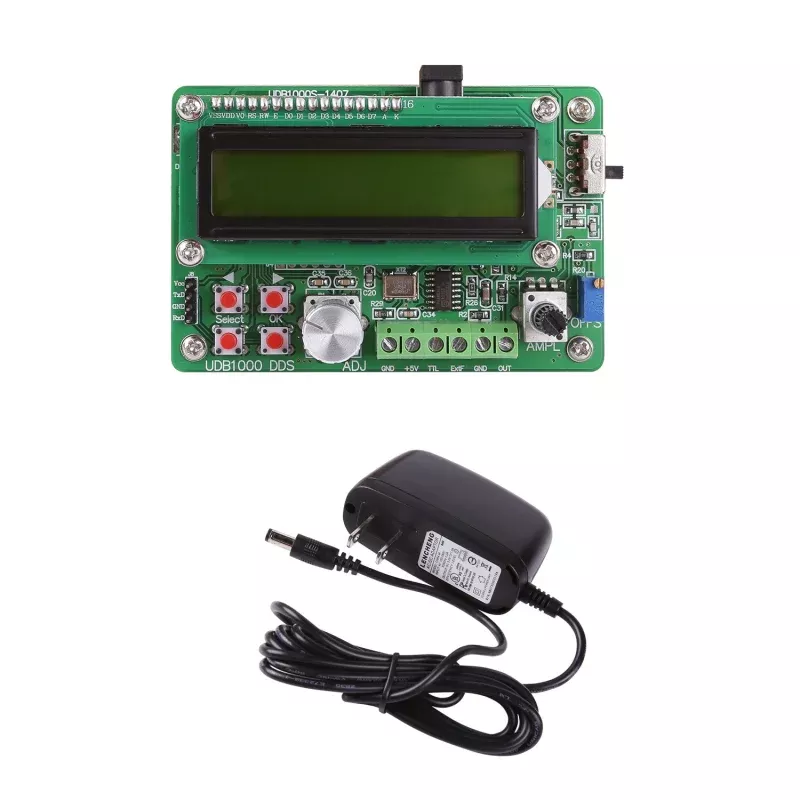

• 1xUDB1002S Function Signal Generator Source Frequency Counter DDS Module Wave 2MHz
• 1Xpower adapter
