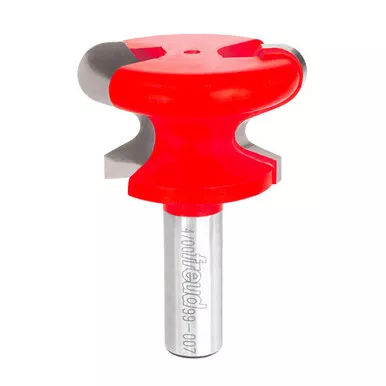

Freud 1-27/32″ Door Pull Bit 99-007
Routing finger pull groove for contemporary cabinet doors
TECHNICAL SPECIFICATIONS:
ANGLE (D) 26-1/2°
LARGE RADIUS (R1) 1/4″
NUMBER OF CUTTERS 2
OVERALL DIA. (D) 1-27/32″
OVERALL LENGTH (H) 2-5/8″
SHANK DIA. (A) 1/2″
SMALL RADIUS (R2) 9/64″
CARBIDE HEIGHT (H) 1-1/8″
MAX RPM 16000
PRODUCT OVERVIEW:
The Door Pull bit is an efficient way to make the wooden finger pull found on contemporary European-style cabinet doors. Use on a router table with a sturdy fence, along with a shop-built 20 degree auxiliary fence to produce the pull molding. Cuts all composition materials, plywoods, hardwoods, and softwoods.
Routs hardwood, softwood, plywood or composites
Use with CNC or table-mounted routers
Freud Perma-SHIELD® Coating
Ideal For: Milling finger pull for cabinet doors, use in hard or soft wood
