Fortis 270c Compact MultiProcess Welding System
Next Generation MIG/MAG and Multi-Process Welding
The Fortis 270 Compact is a versatile welding machine designed to be highly flexible for a variety of tasks and materials. It is part of the Fortis series, which offers up to 240 optimized characteristics specifically for steel construction, while also handling materials like aluminum and stainless steel with a pulsed arc. The Fortis series aims to make welding easier than ever with a user-friendly interface that allows for precise control of welding parameters. The device is built with a focus on ergonomics, featuring integrated carrying handles for easy mobility
Fortis 270C XT is a multi voltage (208-600V, 1Ph or 3Ph) welding machine capable of MIG, TIG and Stick welding from one power source. This package includes MIG torch, TIG and Stick leads are sold separately.
Key Specifications
| Technical Specification |
Fortis 270 C/G/XT |
| Weight |
36.2 kg (79.3 lb) |
| Dimensions (l x w x h) |
681367555 mm (26.814.421.9 in) |
| Mains frequency |
50/60 Hz |
| Mains voltage |
3 x 200600 V |
|
1 x 208/240 V |
| Mains voltage tolerance |
10% |
|
-10/+6% |
| 40% duty cycle |
270 A |
| 60% duty cycle |
250 A |
| 100% duty cycle |
210 A |
| Welding current range |
MIG/MAG 3-270 A |
|
TIG 3-270 A |
|
MMA 10-270 A |
| Open circuit voltage |
max. 107 V |
| Working voltage range |
MIG/MAG 14.227.5 V |
|
TIG 10.120.8 V |
|
MMA 20.430.8 V |
| Wire speed |
125 m/min / 40980 ipm |
| Wirefeeder |
4-roller drive |
| Wire diameter |
0.61.6 mm / 0.0231/16″ |
|
|
| One device for every process |
| Whether for MIG/MAG, TIG, or MMA, our Fortis weldingmachines with multiprocess functionality offer maximumflexibility for practically every field of application. |
|
|
| All key welding parameters at a glance |
| Our clear, digital user interface allows you to keep a constanteye on the most important welding parameters. Fast processchanges, more than 30 system languages to choose from and customizable parameter settings are just a few of the highlights that make these devices extremely easy and intuitiveto use |
|
|
|
| Welding parameter wizard |
Save time — And money
The welding parameter wizard supportsthe welding specialist by recommendingthe ideal parameter settings for upcoming welding jobs. These can be precisely adapted to the respective weldingrequirements in just a few steps to reduceerrors, rejects, and rework while significantly increasing efficiency and quality |
Packed with Innovative Features
|
Synchropulse |
|
Weld faster than TIG, while not sacrificing the “stacked dime” appearance, welding power alternates between two operating points at a frequency of up to 5 Hertz. As the change between high and low current facilitates welding in a vertical up position, for example, it is possible to produce a pronounced seam rippling on aluminum alloys. |
|
Skip the Spool Gun! |
|
Eliminate the need for costly and cumbersome spool guns and push-pull guns. The Fronius 4-Roll drive system virtually eliminates birdnesting when welding with aluminum wires, providing effortless aluminum MIG welding |
|
Simple Open Root Welding |
|
The “Steel Root” welding program has been developed for root welding and also provides a soft and stable dip transfer arc for good gap-bridging ability over wide gaps |
What’s included?

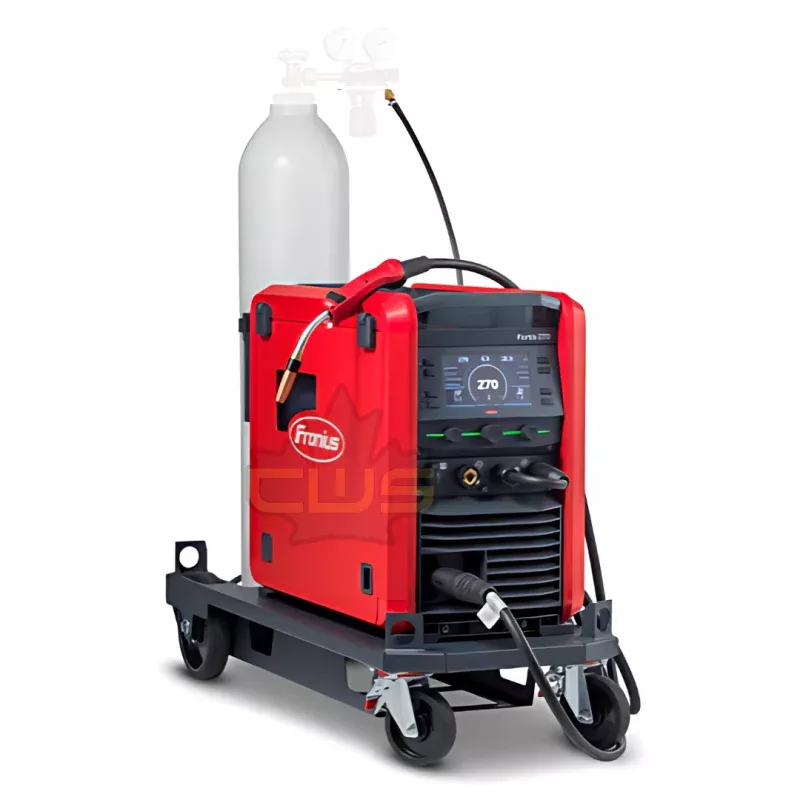

- Fortis 270c XT Compact Power Source – 4,075,260,649
- Welding Package Software, Standard and Pulse for Fortis – 4,066,025
- 15 ft. (4.5m) MIG Torch, MTG 320S w/ Up/Down Control and LED Worklight – 4,036,550
- 13 ft. Ground Cable and Clamp
- 5 ft. Gas Hose
- Drive Rolls for 0.045″ (1.2mm) and 0.035″ (1.0mm) Wire (4 each)
- Contact Tips for 0.045″ (1.2mm) and 0.035″ (1.0mm) Wire (10 each)
- TU Move 4 Pro Single Cylinder Welding Cart – 4,077,034 (Cart Package)
- 4 Conductor 10 Gauge Input Cable – Plug Not Included
- Gas Regulator not Included
