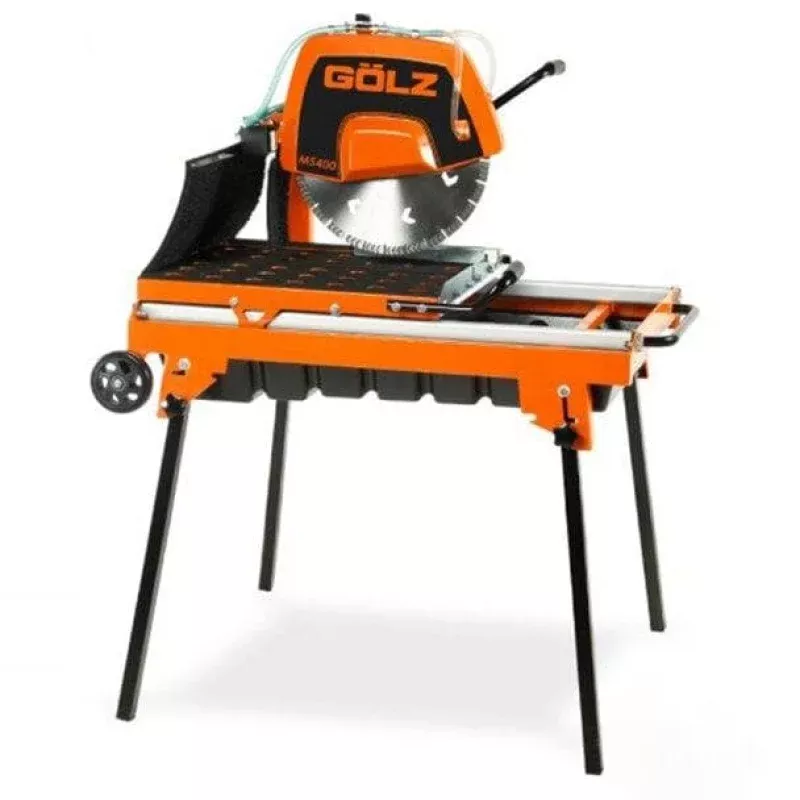

Compact and universal masonry saw with 45 degree tilting head
MS400 – Cutting length 27″ (700 mm)
Blade: 16″ (400 mm)
Cut Depth: 5 3/8″ (137 mm)
- Huge cutting table: 23 5/8″ (600 mm)20 7/8″ (530 mm)
- Removable water tub, easy for cleaning
- Foldable legs
- Electric water pump with quick coupling, easy for changing the pump
- Max. cutting length up to 31 1/2″ (800 mm)
- Removable blade guard for easy blade change
- Special water nozzle for optimized water cooling
- Transportation wheel, easy for moving
Needs a dedicated 20 Amps to run
Specifications
| GLZ MS400 |
| Motor |
Electric, 110V, 50Hz, IP54 20A |
| Power |
2,2 kW / P1 (3PS) |
| Max. cutting depth |
5 3/8″ (137 mm) |
| Max. blade size |
16″ (400 mm) |
| Arbor hole |
1″ (25,4 mm) |
| Cutting length |
27″ (700 mm) |
| Shaft speed |
2800 min-1 |
| 45 miter-cut |
Built-In |
| Water pump |
S2, 110V, 50 Hz, 55Watt 20A |
| Blade flange size |
5 3/8″ (90 mm) |
| Transport wheels |
yes |
| Cutting table (LxW) |
23 5/8″ (600 mm)20 7/8″ (530 mm) |
| Dimensions: (LxWxH) |
43 1/4″ (1100 mm)28 3/8″ (720 mm)50 3/4″ (1290 mm) |
| Weight |
145lbs (66 kg) |
| Manufacturer-Nr. |
0289 400 1000 |
Accessories
| Spare water pump with connector plug |
0289 400 9002 |
| Set of Transport wheels |
0289 400 9068
|
