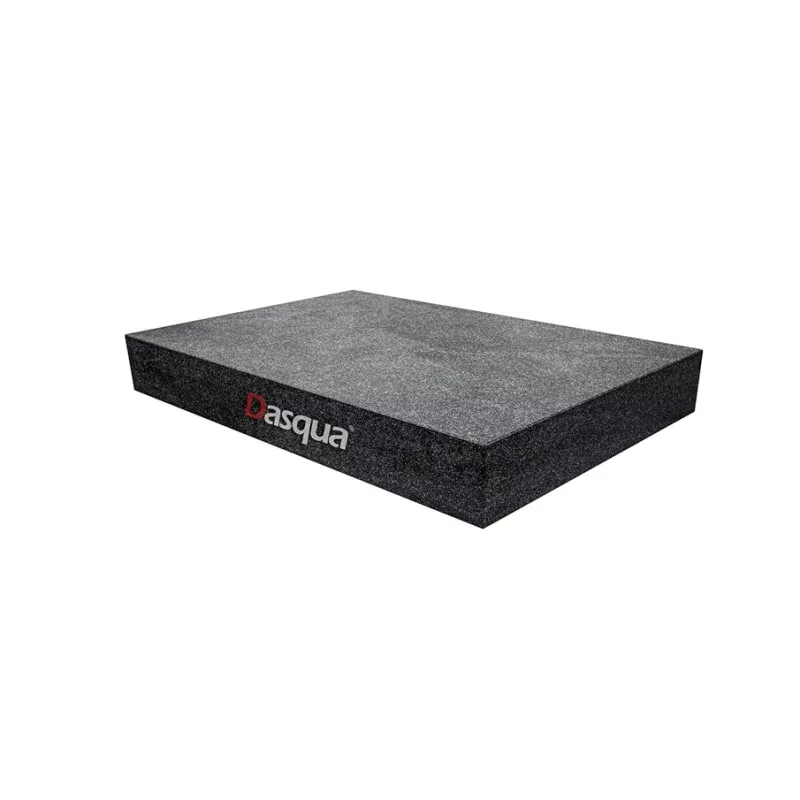

The Granite Surface Plate is engineered for precision inspection and layout work in laboratories and quality control rooms. Manufactured from high density natural granite, it delivers long term dimensional stability and resistance to environmental changes.
With a finely lapped satin matte surface, this plate reduces glare and allows measuring instruments to slide smoothly across the surface. It is non magnetic, non conductive, and 100 percent corrosion proof, making it ideal for high precision measurement tasks. Supplied with a calibration certificate, it meets DIN876 Grade 00 standards for inspection use.
Features
Meets DIN876 Grade 00 standard for inspection room or laboratory use
Made of natural granite free from deterioration or dimensional change over time
Minimal dimensional variation due to temperature changes
High density structure for extreme homogeneity
Surface lapped with satin matte finish to prevent glare
100 percent corrosion proof
Non magnetic and non conductive
Measuring instruments and test equipment slide easily across the surface
Ideal for measuring tasks, layout work, touching up, and lapping precision parts
Supplied with calibration certificate
Specifications
Product type. Granite Surface Plate
Grade. 00
Dimensions L x W x H. 400 x 250 x 70 mm
Flatness. 0.0029 mm
Standard compliance. DIN876
Measurement unit. Millimeter
Comes With
Granite surface plate 400 x 250 x 70 mm
Calibration certificate
Protective packaging for safe transport
