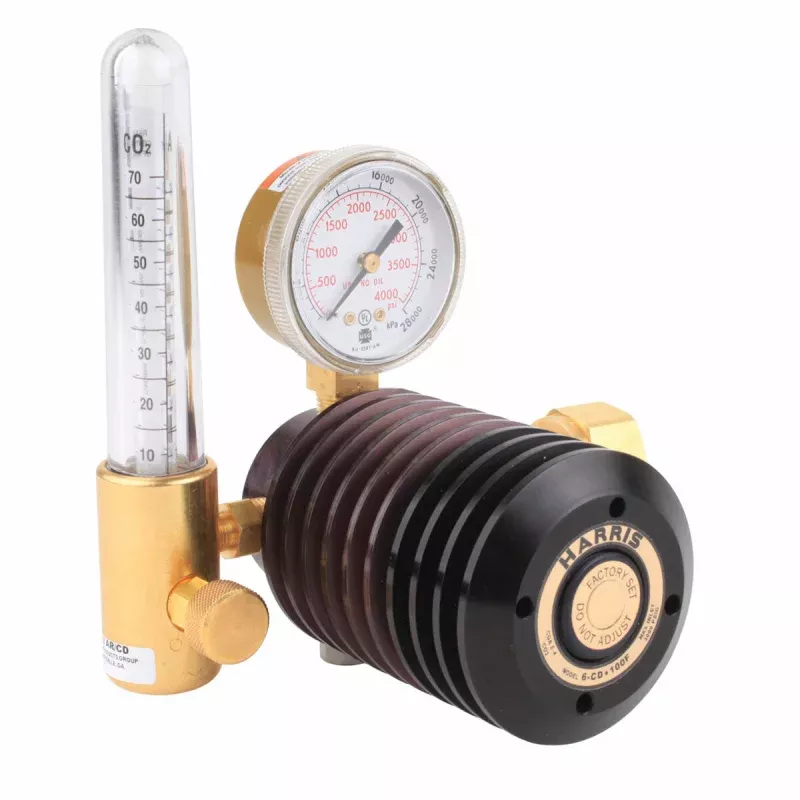

Harris Model 6S-CD-80F-320 Single-Stage Flowmeter Regulator
Model 6S is a compact, competitively priced, single-stage version of our heavy duty two-stage high flow CO2 flowmeter regulator. Designed specifically for CO2 applications where CO2 freeze-up cannot be tolerated. Its sensitive needle valve permits highly accurate flow settings. It requires no electrical power.
Features
- Designed specifically for carbon dioxide applications without freeze-up.
- Regulator is compensated at 50 PSIG.
- Multi-finned aluminum black barstock body and black anodized aluminum bonnet design provides a high rate heat transfer into the regulator.
- Neoprene diaphragm for better pressure control
- 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Durable cover and easy-to-read flow tube
- Provides accurate flow-control to 100 SCFH
- Sensitive needle valve for fingertip control permits highly accurate flow settings
- Body design provides a high rate of heat transfer without electrical power
- Part No. 3100066
- Model No. 6S-CD-80F-320
Supply Gauge Max.
