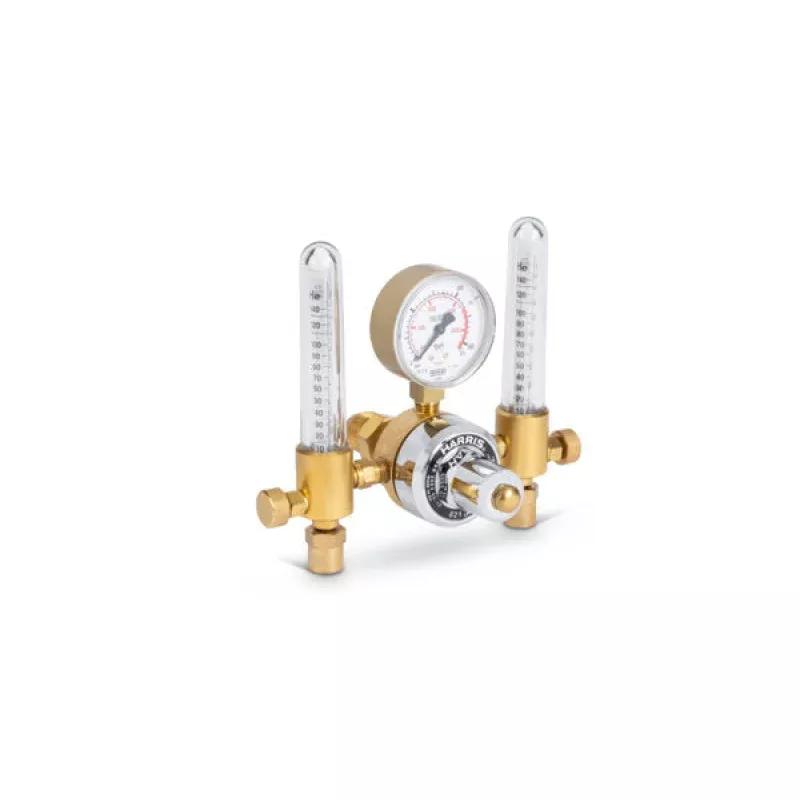

Heavy Duty Dual Flow Meter Regulator Model 356-Ar/He-580
Model 356 dual flowmeter regulator is capable of providing two separate independent flows from one common gas source. It is equipped with two Model 55-2 flowmeters that can be set at different flow rates. It is ideal for back purging, trail purging and/or other dual applications.
This model features sensitive needle valves for fingertip control and durable, easy-to-read, flow tubes and covers. It is equipped with a tamper-proof, self-reseating, high pressure relief safety valve.
The regulator features a brass body, 2 in. brass dual scale gauge and one-piece encapsulated steel design with internal filter and PTFE Teflon seat. It has a 5/8 in. – 18 in. (F) outlet connection. This model is UL listed.
Features
- Flowmeter is UL listed and provides two separate flows from one common gas source
- Regulator is compensated at 20 PSIG
- Brass body and painted zinc bonnet for longer service life
- Neoprene diaphragm for better pressure control
- 2 in. Brass dual scale easy-to-read gauge
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
- Durable cover and easy-to-read flow tube
- Provides accurate flow control to 140 SCFH
- Equipped with two Model 55 flowmeters that can be set at different flow rates
- Sensitive needle valve for fingertip control permits highly accurate flow settings
Part No. 3100140
