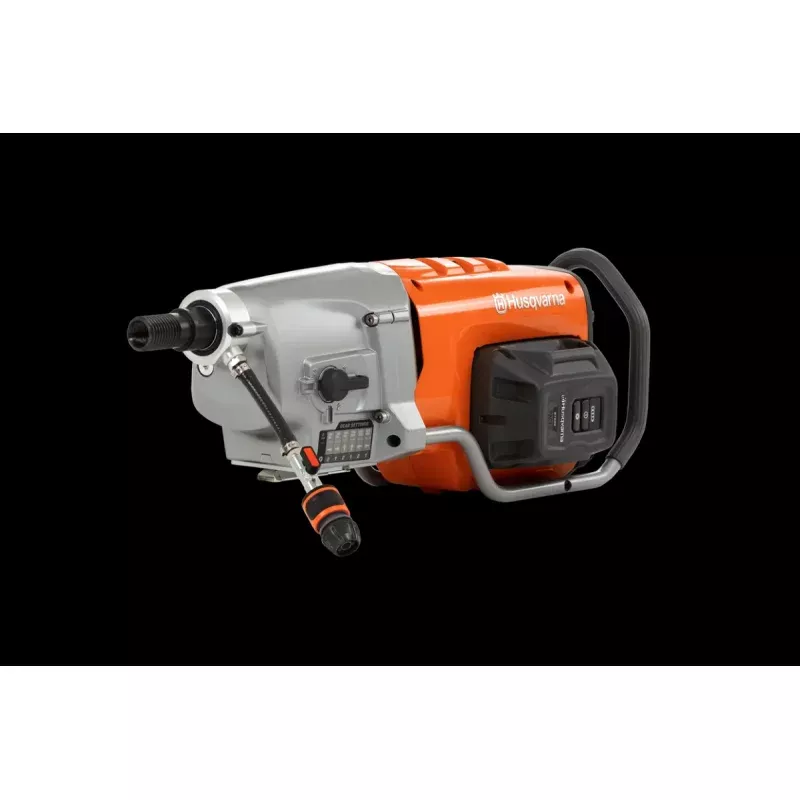

DM 1 PACE is a powerful battery core drill, designed for stand-mounted operation and part of the PACE battery system (94V).
It is compatible with the DS 500 drill stand and, together with the DE 120 H PACE, creates an effective solution. Cable-free operation eliminates the need for electric outlets or heavy extension cords, allowing you to start work immediately at any job site without delays.
Features
- Zero CO emissions during use
- High productivity and efficiency
- One drill motor for most applications
- Longer lifetime and durability
- Low cost of ownership
- User-friendly
- Part of the PACE battery ecosystem
- Strong resource-smart plastic
Specifications
| Motor type |
BLDC (brushless) |
| Output power |
3.2 hp |
| Power source |
Battery |
| Battery eco system |
PACE |
| Equipment |
| Drill bit diameter with stand, max |
16 in |
| Recommended drill bit diameter, min |
1 in |
| Transmission |
| Number of gearbox speeds |
3 |
| Numbers of electronical gearbox speeds |
2 |
| Spindle speed unloaded gear 1 |
234 rpm |
| Spindle speed unloaded gear 2 |
431 rpm |
| Spindle speed unloaded gear 3 |
888 rpm |
| Product data |
| Water connector |
Gardena Male |
| Water pressure, max |
43.5 psi |
| Spindle thread, inner |
G 1/2″ |
| Spindle thread, outer |
1 1/4″ -7 UNC |
| Dimensions |
| Product size length |
26.5 in |
| Product size width |
6.8 in |
| Product size height |
9.3 in |
| Weight |
26 lbs |
| Packaging length (Calc) |
30.315 in |
| Packaging width (Calc) |
10.039 in |
| Packaging height (Calc) |
13.189 in |
| Article gross weight (Calc) |
33.51 lbs |
| Sound and noise |
| Sound power level, guaranteed (LWA) |
109.1 dB(A) |
| Sound power level, measured |
109.1 dB(A) |
| Sound pressure level at operators ear (LpA) |
93.4 dB(A) |
