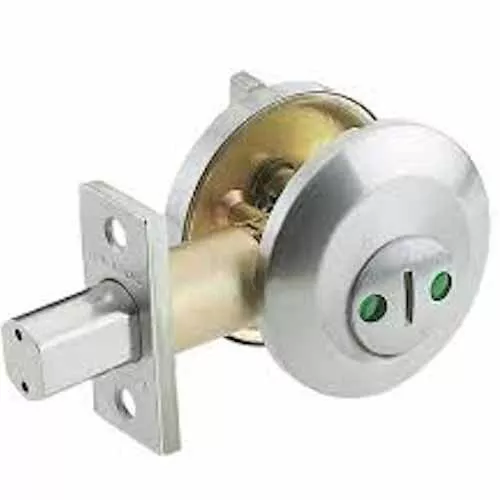

IND84 Cal-Royal Occupancy Indicator Deadbolt, Standard Duty Grade3
Conforms with ANSI A 156.2 Series 4000, Standard Duty Grade 3 requirements
ADA (American Disability Act) Ergonomic Thumbturn
Red (locked) and green (unlocked) indicator
Coin edge slot for emergency opening
1” throw with anti-saw pin
Specifications:
Trim: Wrought Brass or Stainless Steel.
Door Range: Adjustable 1 3/8” (35mm) to 1 ¾” (45mm) Door Thickness
Backset: Adjustable 2 3/8” (60mm) or 2 ¾” (70mm)
Deadbolt Faceplate: Standard 2 ¼ (57mm) X 1” (25mm) packed with 1/8” (4mm) plastic filler to convert 1” face plate to 1 1/8” wide door preparations.
Bore Diameter: 1” (25mm) for latch, 1 1/2” (38mm) or 2 1/8” (54mm) for lock housing.
Strike: 1 1/8” (29mm) X 2 3/4” (70mm) Square Corner.
Finishes: US3, US4, US26D and US10B
