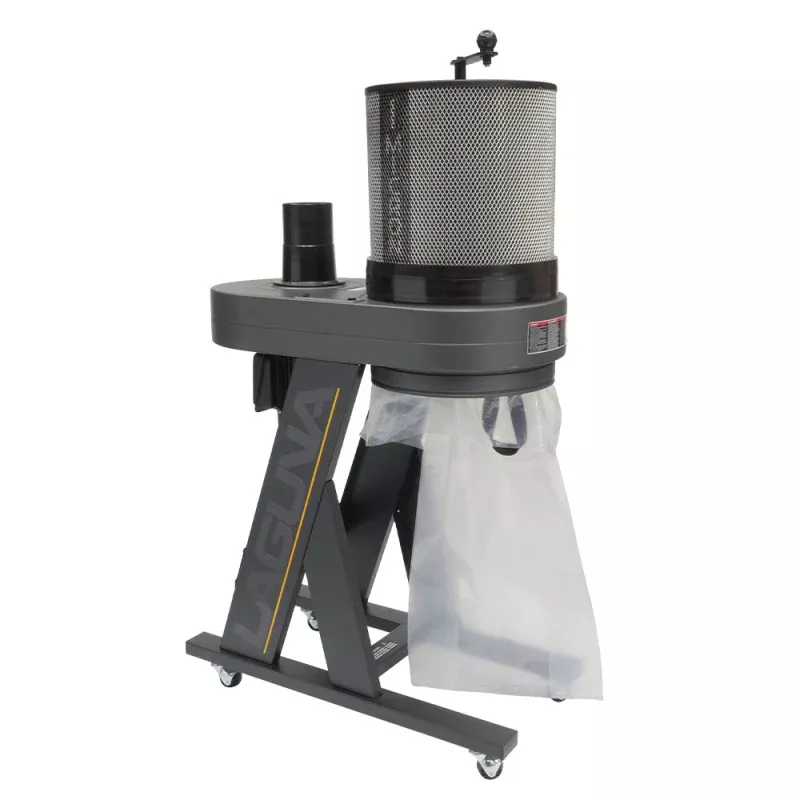

Small wood shops needing a single-stage dust collector should look no further than the Laguna B|Flux. It features a sleek design with power to match.No more fumbling with a steel band to mount your lower bagthe B|Flux comes with a patented Snap-Band that makes changing the bag a breeze.
Unlike most 1HP units the B|Flux feels solid & has a low dB rating. The horizontal dust chute provides optimum airflow and can swivel 180 to make the 4″ outlet face downwards. With 550 CFM, this dust collector is ideal to run with 1-2 tools.
The B|Flux comes standard with a 1 Micron canister, providing filtration of 99.97% of particles between 0.2 ~ 2 Microns and features 17.2 sq. ft. of polyester spun bond pleated filter to ensure maximum airflow. Hand crank cleaning prevents filter clogging. Also includes four casters for machine mobility.
Collection bags>
All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.
[TABS]
Features
- 1 micron canister providing filtration of 99.97% of particles between 0.2 ~ 2 microns
- 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow
- Hand crank cleaning prevents clogging of the filter
- Includes mobility casters
Specifications
Horsepower: 1hp
Electrical: 110V, 1-PH, 8.4 A
Recommended Breaker: 15 Amps
Hertz: 60
Speed: 3,450 RPM
Switch type: Motor mounted direct switch
Real CFM: 550
Nominal CFM: 650
Max Static Pressure (inches of water): 4.86″
Impeller/Fan Size: 9″
Impeller Material: Steel
Impeller type: Radial Fin
Balanced To: ISO 1940
Inlet Diameters: 4 x 1 ports
Drum collection bag (Dia. x L): Plastic bag (350 x 980mmL)
Canister Filter type: 1 Micron
Filtration efficiency: 0.2-2micron @ 99.97%
MERV rating: 12
Canister diameter: 360mm (14.2)
Canister length: 300mm (11.8)
Filter Surface Area: 1.6m/17.2ft
Canister cleaning: Manual Handle crank 360
Wheels: 2 Ball Caster
CSA Approved: Yes
Decibel Reading: 76 d B(A) (@9.8ft)
Machine weight: 71 lbs.
Shipping weight: 77 lbs.
Dimensions (L x W x H): 29 x 14.8 x 50.4
