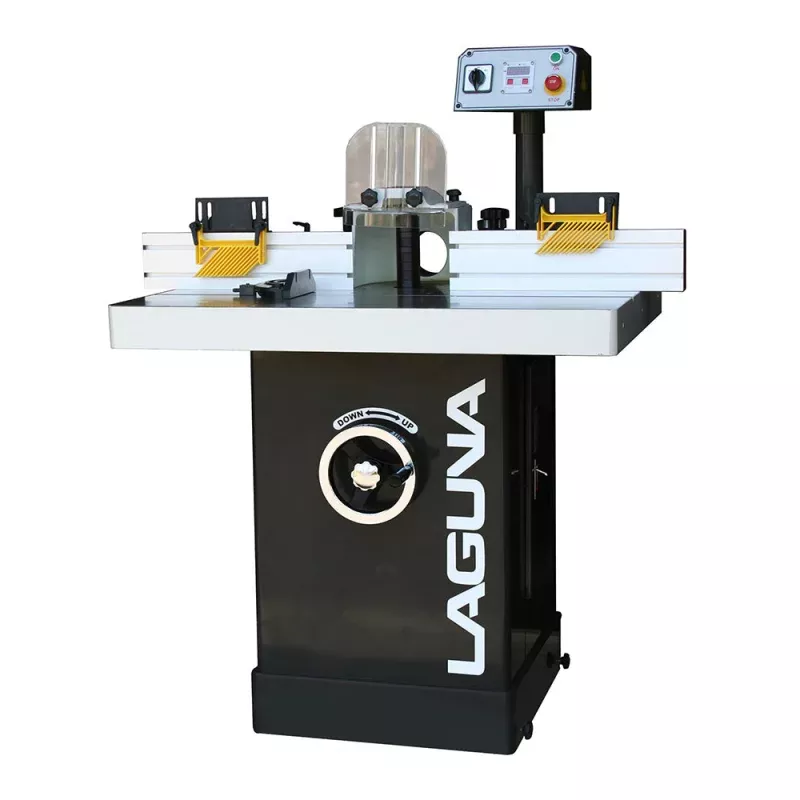

The Laguna Pro Shaper combines a precision shaper with features normally found only in much higher priced machines. For starters, the table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16 adjustment to the fence.
Inside you will find a heavy-duty 7.5 HP 220 volt three-phase motor. It offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.
The fit and finish on this machine are top notch and even includes a wheel kit built right into the base. The Laguna Pro Shaper is designed to give you years of trouble-free performance without breaking the bank.
All Laguna Tools woodworking machinery carry a 2-year warranty. Must register machine within 30 days of purchase.
Also available in 5hp & 1-phase.
[TABS]
Features
- Heavy-duty precision fence
- Rack and pinion macro adjustment
- Quick-release belt change
- 6 step spindle exchange
- Dual dust ports
Specs
Motor: 7 1/2 HP 3 Phase 220/440V 60 HZ Prewired 220V 3 Phase
Table size:39-5/16″x 31-7/16“x 3-1/2“
Spindle travel:4“
Spindle Sizes:3/4“and 1-1/4“
Capacity Under Nut:6 (for 1-1/4“) & 4 (for 3/4“)
Router Collets:1/4“and 1/2“
Spindle speeds:5,000 / 7,000 / 10,000RPM
Table Opening Diameter:7-5/16“
Digital Readout:Standard
Direction:Forward/Reversing Switch
Fence:Micro Adjustment
Weight (Net/Ship):640/720 lbs.
