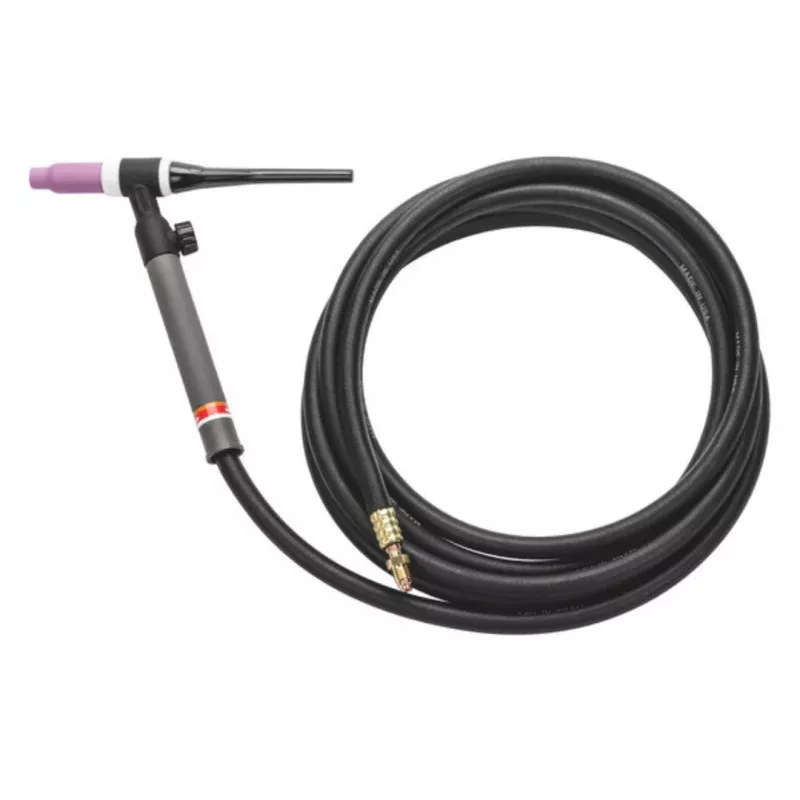

Lincoln Electric PTA-17V TIG Torches
Premium Air-Cooled, Valved TIG Torches
Light and easy to use, these torches give you the power of maximum versatility and maneuverability. A molded, knurled handle gives you a sure grip so you can focus on the weld. V model torches provide a convenient gas control valve to turn off and on shielding gas at the torch. Whether you are an occasional TIG welder, fabrication shop or production welder, Pro-TorchTIG torches are right for you.
Features
- V model torches have a convenient gas control valve on the torch to quickly and easily control the shielding gas flow when a gas solenoid valve is not built-in to the power source.
- Meet the performance needs of the professional.
- Comfortable knurled handle for a non-slip sure grip for precise control of TIG Torch.
- Molded lip/ridge on the torch handle for easy connecting of a zippered cable cover. Allows cable cover to be securely attached to torch handle.
- All Pro-TorchTIG torches are made from the highest quality materials to assure high performance and long life.
- Torch end has 3/8″-24 RH threaded connector, see our Torch Adapters Collection for compatible adapters
Available Options and Part Numbers
| Part Number |
Torch Series |
Head Type |
Duty Cycle (Amp) |
Cable Length |
Cable Style |
Cable Type |
| K1782-6 |
17 Series |
Rigid, Valved |
60% @ 150 |
12.5 ft. |
1 Piece |
Rubber |
| K1782-7 |
17 Series |
Rigid, Valved |
60% @ 150 |
12.5 ft. |
2 Piece |
Rubber |
| K1782-13 |
17 Series |
Flexible, Valved |
60% @ 150 |
12.5 ft. |
2 Piece |
Ultra Flex |
| K1782-11 |
17 Series |
Rigid, Valved |
60% @ 150 |
25 ft. |
1 Piece |
Rubber |
Torch Adapter Guide for Lincoln Electric Machines
| Machine |
Connection Type |
9/17 Series 1 Cable |
17/26 Series 2 Cables |
26 Series 1 Cable |
18/20 Series 3 Cables
|
| Square Wave TIG 200 |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
– |
| Precision TIG 225 |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
K1622-4 |
| Precision TIG 275 |
5/8 in. Gas Thru |
K2166-3 |
K2166-2 |
K2166-1 |
No Adapter Required
|
| Precision TIG 375 |
5/8 in. Gas Thru |
K2166-3 |
K2166-2 |
K2166-1 |
No Adapter Required
|
| Aspect 230 |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
K1622-5 |
| Aspect 375 |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
K1622-5 |
| POWER MIG 210MP |
35 mm Dinse External Gas |
K960-1 |
– |
K1622-3, K2505-1 |
– |
| POWER MIG 360MP |
1/2 in. Stud Terminals |
K1622-1, K2505-3 |
No Adapter Required |
K1622-3, K2505-3 |
– |
| Flextec 350X/500X Tweco |
External Gas |
K960-4 |
– |
K960-3 |
K1622-6 |
| Ranger 260MPX/330MPX |
1/2 in. Stud Terminals |
K1622-1, K2505-3 |
No Adapter Required |
K1622-3, K2505-3 |
– |
| Power Wave 300C |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
K1622-5 |
| Power Wave S350 |
Tweco External Gas |
K960-4 |
– |
K960-3 |
K1622-6 |
| Power Wave S350/Adv. Module |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
K1622-5 |
| Power Wave S500 |
1/2 in. Stud Terminals |
K1622-1, K2505-3 |
– |
K1622-3, K2505-3 |
K1622-5, K2505-3
|
| Power Wave S500/Adv. Module |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
K1622-5 |
| PIPEFAB |
35 mm Dinse Gas Thru |
K1622-1 |
– |
K1622-3 |
K1622-5 |
