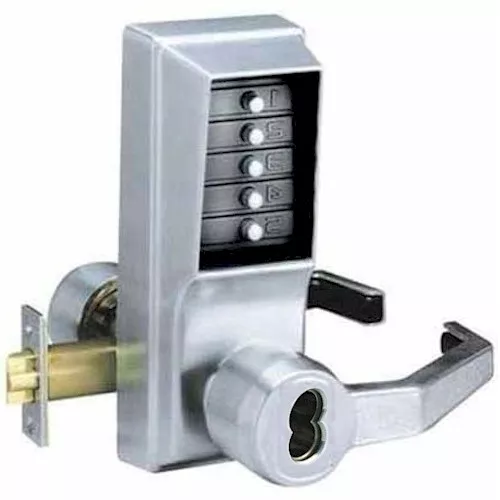

LR1041M 26D 41 Dormakaba Simplex Mechanical Pushbutton Lock with Large Format R/C, Medeco/ASSA/Yale (5 or 6 pin length), core not included , and Passage Mode, to control access between public and private areas.
Handing: Right Hand or Right Hand Reverse Only, (factory handed, not field reversible)
ADA-compliant lever
Mechanical Lock, No Batteries needed
Keying: Large Format R/C, Medeco/ASSA/Yale (5 or 6 pin length), core not included
PIN Access – Mechanical Pushbutton Lock – Cipher Lock – Control Both Entry/Egress – Single Access Code – Cylindrical – Lever
Function:
Cylindrical Lock, Combination Entry, Key Override and Passage Mode
Locking Device Option:
Cylindrical 1/2” (13mm) throw latch, floating face plate
2-3/4” (70mm) backset (UL listed)
Key Override Options:
Large Format R/C, Medeco/ASSA/Yale (5 or 6 pin length), core not included
