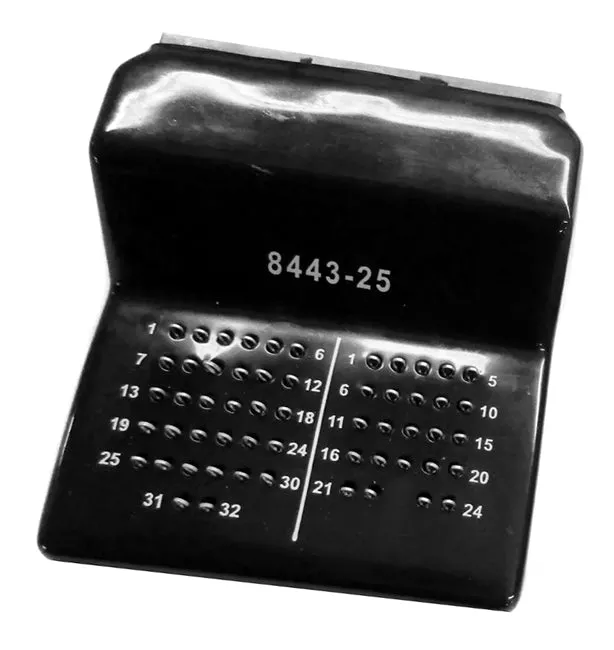

Mopar Tools 8443B-25 56-Way ACM Harness Adapter
Part of 8443-25
The Mopar Tools 8443B-25 56-Way ACM Harness Adapter is a specialty tool used in automotive diagnostics and repair. It is designed to connect to the automotive control module (ACM) and allow easy access to the vehicle’s electrical system.
This adapter is part of the Mopar Tools 8443B diagnostic tool.
It features a 56-way connector that connects securely to the ACM harness.
Applications:
- 2006 (Ram Truck, Durango, Liberty) – System (28 – DTC-Based Diagnostics)
- 2007 (Ram Truck, Durango, Aspen, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Liberty, Compass/Patriot, Caliber) – System (28 – DTC-Based Diagnostics)
- 2008 (Ram Truck, Durango, Aspen, (CKD) Wrangler, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Compass/Patriot, Caliber, Viper) – System (28 – DTC-Based Diagnostics)
- 2009 (Ram Truck 2500/3500, Durango, Aspen, (CKD) Wrangler, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Compass/Patriot, Caliber, Viper) – System (28 – DTC-Based Diagnostics)
- 2010 (Ram Truck Cab Chassis, Ram Truck 4500, (CKD) Wrangler, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Nitro, Liberty, Compass/Patriot, Caliber, Viper) – System (28 – DTC-Based Diagnostics)
- 2011 ((CKD) Wrangler, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Nitro, Liberty, Compass/Patriot, Caliber) – System (28 – DTC-Based Diagnostics)
- 2012 (500, (CKD) Wrangler, Journey, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Liberty, Compass/Patriot, Caliber, Caravan, Grand Caravan, Town & Country) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
- 2013 (FB, 500, (CKD) Wrangler, Journey, Freemont, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Compass/Patriot, Caravan, Grand Caravan, Town & Country) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
- 2014 (500L, (CKD) Wrangler, Journey, Freemont, 200, 200 Convertible, Avenger, Sebring, Sebring Convertible, Compass/Patriot, Caravan, Grand Caravan, Town & Country, Ram Ducato) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
It is important to stay updated with the latest information as new vehicles and components are released or updated to minimize the number of tools required to service Chrysler Group vehicles. The usage of tools may vary, and it is advisable to refer to the most recent resources and guidelines provided by Chrysler Group for accurate information on the required tools for servicing their vehicles.
Do not use power tools. Breakage due to the use of power tools voids your warranty.
Manufacturer: SPX/Bosch (OTC Rotunda Kent-Moore Miller)
