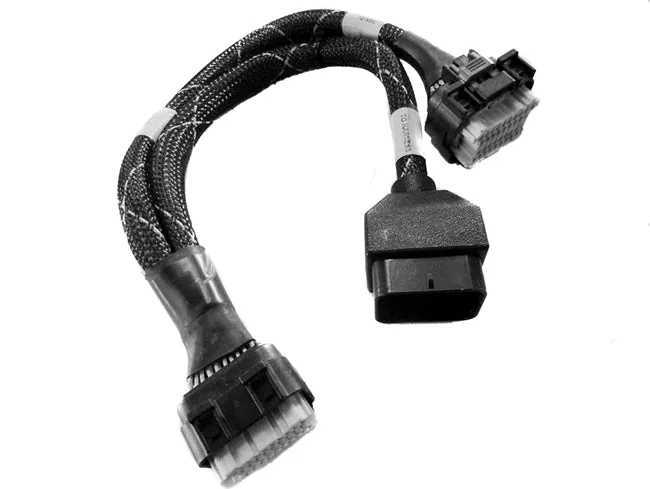

Mopar Tools 8815B-1 PCM Pinout Box Adapter
Adapter for PCM Pinout Box 8815
Used in conjunction with Brake Out Box 8815 to diagnose the Powertrain Control Module (PCM) concerns.
Applications
- 2006 (DR, HB, KJ, LX, ND, PT, WK, XK) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
- 2007 (CS, DR, HB, HG, JK, JS, KA, KJ, LX, MK, ND, PM, PT, VB, WK, XK) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
- 2008 (CS, DR, HB, HG, JK, JS, KA, KK, LC, LX, MK, ND, PM, PT, RT, VB, WK, XK, ZB) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
- 2009 (DH, DS, HB, HG, JC, JK, JS, KA, KK, LC, LX, MK, ND, PM, PT, RT, WK, XK, ZB) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
- 2010 (DS, JC, JK, JS, KA, KK, LC, LX, MK, ND, PM, PT, RT, WK, XK, ZB) – Systems (28 – DTC-Based Diagnostics, 29 – Non-DTC Diagnostics)
- 2011 (DS, JK, KA, KK, ND, RT, WD, WK) – System (28 – DTC-Based Diagnostics)
- 2012 (DS, KK, WD, WK) – System (28 – DTC-Based Diagnostics)
- 2013 (WD, WK) – System (28 – DTC-Based Diagnostics)
Do not use power tools. Breakage due to use of power tools voids your warranty.
