Description:

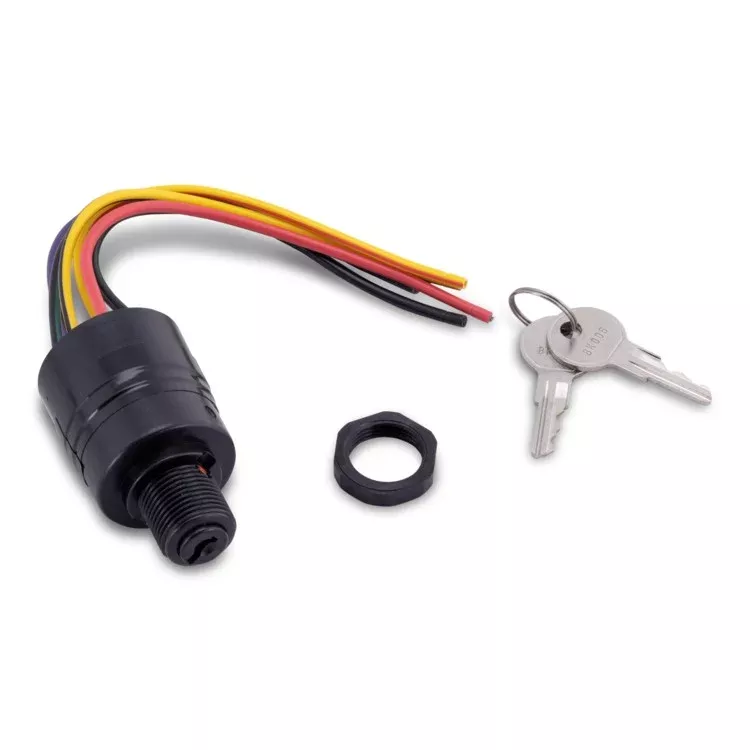

•Ignition SwitchKey Features:•Maximum corrosion protection – eliminates oxidation•Inner seal between cylinder lock and contact plate•Non-conductive housing eliminates potential shorts•Push to ChokeAdditional Details:•Back Up Nut:Not Required•Face Nut:Hex Black Plastic•Hole Size:7/8″•Length:Short: 5/8″ maximum panel thickness•Material:Marine grade glass-filled Polyester•Note:Colours on switch wires match factory colour codes•Rated Choke:7 Amp @ 12v DC•Rated Ignition:15 Amp @ 12v DC•Rated Solenoid:30 Amp @ 12v DC•Switch Positions:Off – Run – Start•Terminal Type:6 Colour Coded Wire Leads/Potted•Type:3 Position MagnetoInterchange:Mercury Marine•87-17009A2•87-17009A5
