Description:

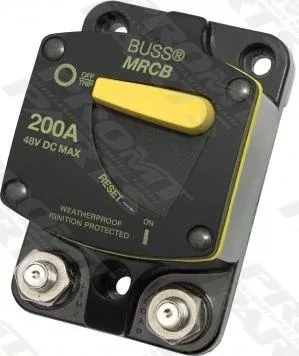

B = NO PACKAGINGSingle Pole Switchable Manual ResetThermal Circuit BreakerFeatures:• Weatherproof IP66 design• Trip free safety feature• Switchable circuit protection• Easy installation/ operation• Ignition Protected• CE ApprovedSpecifications:• Rating: 25-200A, 48V DC• Interrupt Rating: Main Breaker Protection Interrupt Rating(5,000A@ 14V DC, 3,000A@ 28V DC and 1,500A@ 48V DC)• Operating Temperature Rating: -40°F (-40°C) to 185°F (85°C)• Storage Temperature Rating: -40°F (-40°C) to 260°F (125°C)• Materials: Black UL-rated 94V0 thermoset plastic body• Cover and lever are UL-rated 94V0 thermoplastic• Marking: Standard marking includes amp/volt ratings• Termination: 5/16-18 threaded studs• Torque Rating: 75 in-lbs (8.5Nm) max• Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6 Nm) max• Ingress Protection Rating: IP66• Compliances: ABYC E-11; CE; SAE J1171 (ignition protected)• Available in other sizes upon request, from 25–150 amps
