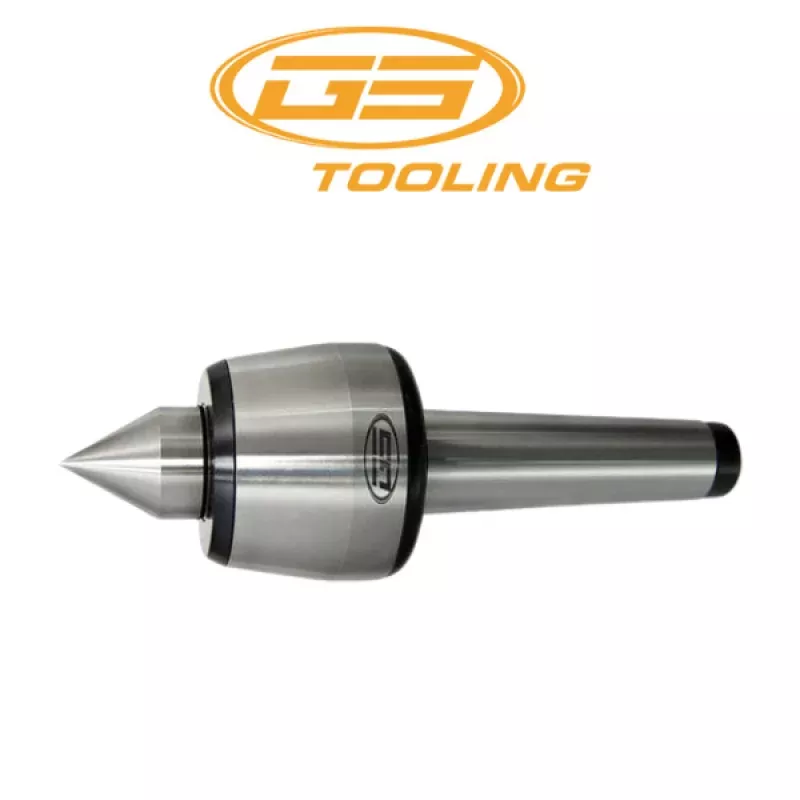

MT5 CNC High Speed Live Centre
Shank Type: Taper Shank
Taper Size: MT5
Maximum Workpiece Weight (kg):2000
Point Diameter (mm):40
Accuracy guaranteed to 0.003mm TIR (0.0001″)
Heat treated point to HRC 602
High performance lip seal and deflected shaft design protects bearing space from ingress by dust and coolant
60 point angle
4-Bearing System: a double row angular contact bearing, a radial ball bearing, and a rear needle roller bearing combine to provide excellent rigidity and high precision point concentricity
Heat treated drop-forged body (HRC 502) for extra strength, rigidity, and long life
Shaft borehole for easy dismounting
For Additional Product Information See Link HERE
**This item is stocked and shipped from Sowa Tool **
01/24
Sowa Pt 311014
