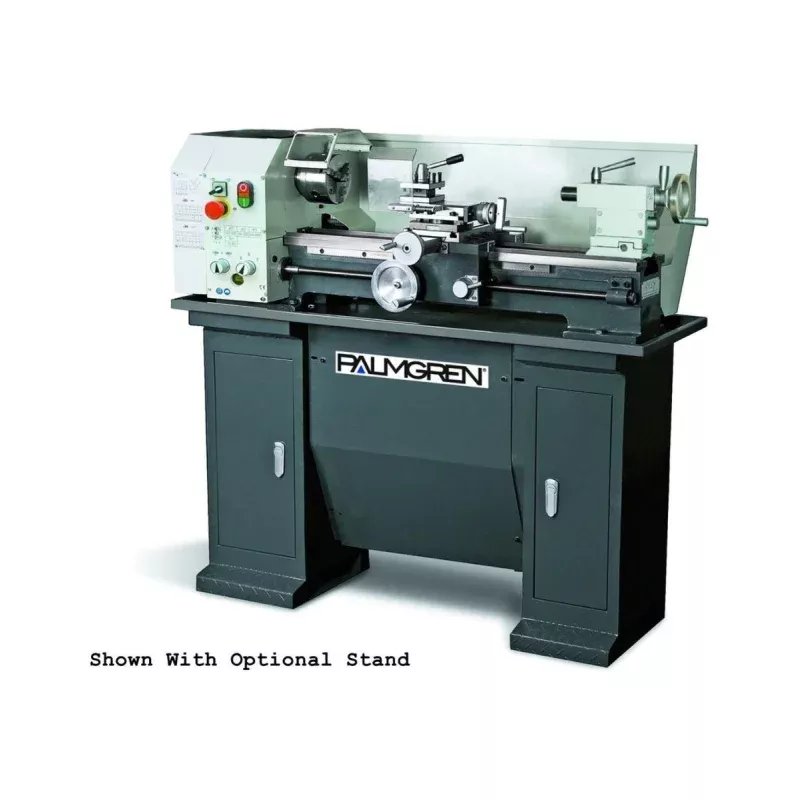

Palmgren 9 x 20 in. Bench Engine Lathe 9684504

9684504, Palmgren 9inx20in Bench engine lathe

Palmgrens 9″ bench engine lathe delivers the precision, power and versatility to handle a wide range of turning operations normally found in much larger machines. Heavy cast iron construction, smooth power transmission, precision thrust and ball bearings in the head stock and spindle, hardened and ground ways all designed to give you years of trouble-free, precise turning. Built and inspected to the DIN 8606 toolmakers precision lathe standard, assuring accuracy and consistent performance. The bench lathe is the right choice for turning small metal parts and isused in proto type shops, tool rooms, fabrication shops, maintenance shops, jewelry manufacturing and by home and hobby machinists.

Features:

• Machine tool spindle
• Dual P5 tapper roller bearings on spindle
• Prismatic bed of solid aged cast ironhardened to HRO 42-52 for long life
• Fast easy feed speed and direction changes with front mounted selector handles
• Feed gear box is constructed of steel gears running in an oil bath
• Feed lead screw is supported and runs on two bearings
• Precision machined slide with adjustable hand wheels with 0.002″ / 0.001″ scales
• Tailstock with adjustable precision scale of 0.02 mm / 0.001″
• 3 Jaw lathe chuck
• 4 Way tool post
• Safety lathe chuck and tool post guards
• Centers
• Chip tray and splash guard

OPTIONAL ACCESSORIES Available:
9684505 – Heavy duty steel floor stand with hinged doors for added storage
9684506 – Follow rest for 9″ bench lathe
9685407 – Steady rest for 9″ bench lathe

Specifications:

Motor 1HP / 115V / 60HZ / 1PH Center Height 125 mm / 4.92 in Distance Between Centers 550 mm / 21.65 in Turning Diameter (max) 250 mm / 9.84 in Max Swing Over Compound Slide 150 mm / 5.91 in Bed Width 135 mm / 5.31 in Length 1250 mm / 49.21 in Width 585 mm / 23 in Height 475 mm / 18.70 in Weight 125 kg / 276 lb Spindle Speed 125 – 2000 RPM Number of Steps 6 Spindle Taper MT 4 Spindle Hole 6 mm / 1.02 in Chuck Size 125 mm / 4.92 in Top Slide Travel 70 mm / 2.76 in Compound Slide Travel 110 mm / 4.33 in Tailstock Taper MT2 0 Tailstock Sleeve Travel 65 mm / 2.56 in Longitudinal Feed .002″ – .012″ Pitch 0.2 – 4.0 mm / 56 – 8 in Tool Holder Seat Height 13 mm / 0.5 in
