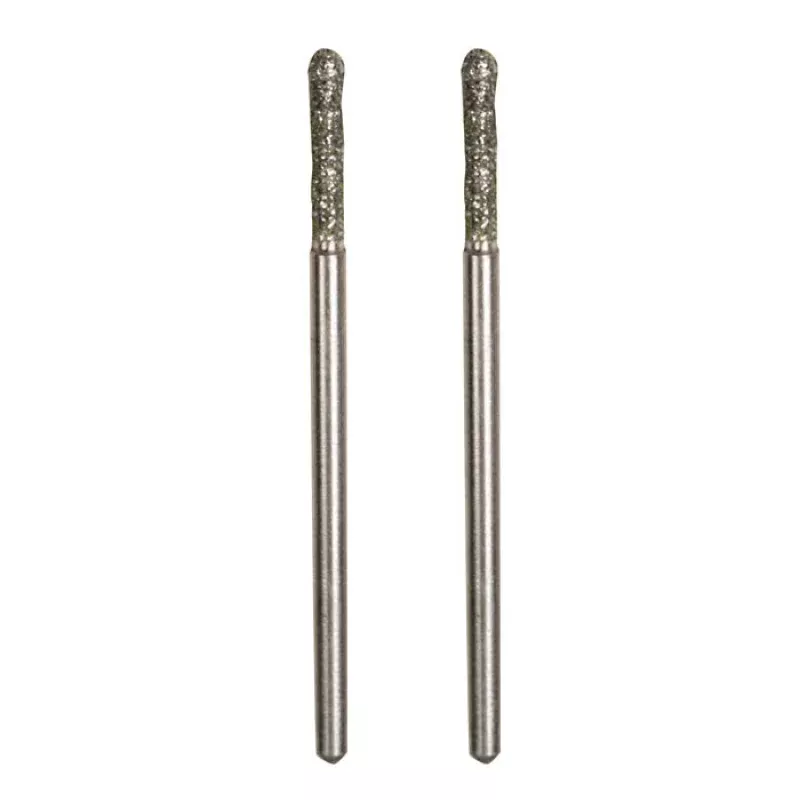

The Proxxon Diamond Drilling and Grinding Bit (1.5mm) is a precision micro-bit for drilling and grinding in glass, ceramics, porcelain, and hard stone with Proxxon MICROMOT rotary tools. The diamond coating provides the hardness to penetrate brittle materials cleanlywhere standard HSS or carbide bits would chip or crack the workpiece. At 1.5mm, this bit bridges the gap between the ultra-fine 1.0mm and the larger 3.2mm ball bit, making it ideal for slightly larger precision holes in tile, glass, and stone.
Key Features
- Diamond-coated tipPenetrates glass, ceramics, porcelain, and hard stone
- 1.5mm diameterPrecision drilling for detail work in hard brittle materials
- 2.35mm shankFits all Proxxon MICROMOT collet tools
- Coolant requiredUse with water or cutting fluid to prevent overheating
- Best at 2,000 RPMUse on a drill press for controlled, consistent results
Specifications
- Diameter: 1.5mm
- Shank: 2.35mm (3/32″)
- Coating: Diamond
- Recommended speed: 2,000 RPM
- Coolant: Required
Best Suited For
- Glass drilling and engraving
- Ceramic and porcelain tile detail work
- Hard stone and semi-precious stone
- Mosaic and lapidary applications
- Jewelry and craft precision drilling
Works Well With
- Proxxon IBS/A Cordless Drill/GrinderCordless MICROMOT rotary tool for flexible use
- Proxxon Diamond Drilling & Grinding Bit 1.0mmFiner bit for smaller holes in the same materials
- Proxxon Diamond Drilling & Grinding Bit 3.2mm BallBall-shaped bit for concave grinding and milling
- Proxxon Diamond Twist Drills 0.8mm + 1.2mmTwist drill format for cleaner entry holes
