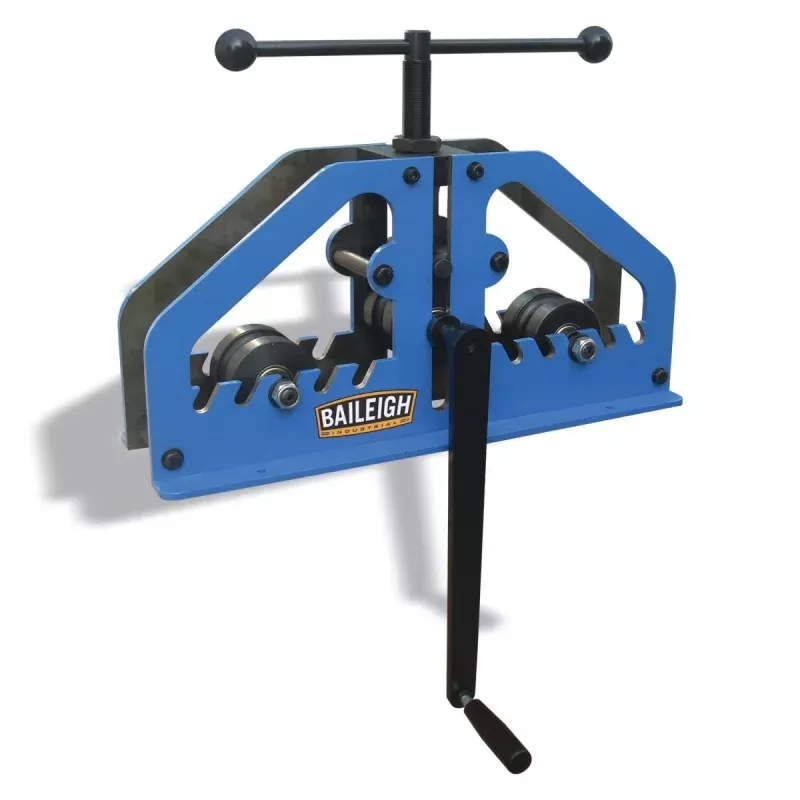

Radius Bender R-M7

The portable radius bender R-M7 is built from quality steel (unlike most competing roll benders in this price range) and can bend tube and pipe to large radii.

• Bends 1.5 pipe to a minimum radius of 20 and 2 round tube to a minimum radius of 60.
• Manual crank makes quick work of large radius bends*.
• Shafts turn on precision ball bearings for the smoothest possible operation.
• Many different tooling options, available from Baileigh, enable the machine to tackle a wide range of projects
• Takes up little space and will easily fit into even the smallest shops.
• Includes a set of 1-1/2″ OD tube dies.
• Baileigh covers this tubing roller with a 1-year parts warranty and lifetime technical support by phone.

*Please note that the R-M7 steel roll bender is not for rolling complete circles.

Specs onRadius Bender R-M7

Item Number R-M7 Roll Adjustment Manual Pipe Capacity Size: 1.5″ / Min. Radius: 20″ Round Tube Capacity Size: 2″ / Min. Radius: 60″ Shaft Center Distance Adj. (lower rolls) Rectangle Capacity Size: 1 x 2″ / Min. Radius.: 10″ Pinch Single Capacity Flat Bar Size: 1.25″ / Min. Radius.: 10″ Power Manual Shipping Weight 83lbs Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile StrengthMild Steel. *Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. Shipping Dimensions (Inches) 26x10x19

* specifications subject to change without notice.
