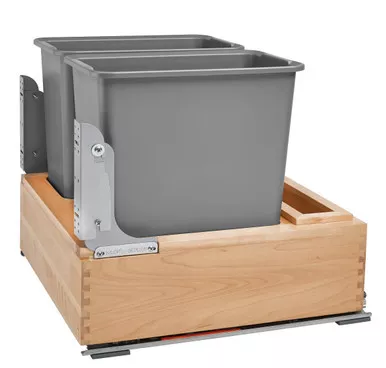

Rev-A-Shelf Natural Maple Bottom Mount Waste Pullout with Double Metallic Silver 30 Qt. Containers and Soft-Close Slides 4WC-24DM2-SC
Bring style and affordability to your kitchen with Rev-A-Shelf’s 4WC Series. Designed for 24″ base cabinets, the 4WC-24DM2-SC Series offers a natural maple dovetail frame with semi-gloss finish, two slide configurations and patented pre-assembled door mount brackets (US Patent No. 6,390,576).
Short Description Natural Maple Bottom Mount Waste Pullout with Double Metallic Silver 30 Qt. Containers and Soft-Close Slides
Primary Color Natural Maple
Frame Color Natural maple
Waste Container Color Metallic Silver
Frame Material Wood
Waste Container Material Polymer
Face Frame Min. Cab. Opening Width (inches) 20 1/2″
Face Frame Min. Cab. Opening Depth (inches) 22 3/8″
Face Frame Min. Cab. Opening Height (inches) 19 3/4″
Frameless Min. Cab. Opening Width (inches) 21″
Frameless Min. Cab. Opening Depth (inches) 22 3/8″
Frameless Min. Cab. Opening Height (inches) 19 3/4″
Inset Min. Cab. Opening Width (inches) 20 1/2″
Inset Min. Cab. Opening Depth (inches) 23 1/8″
Inset Min. Cab. Opening Height (inches) 19 3/4″
Width (min to max): 20 31/32″
Depth (min to max): 22 3/8″
Height (min to max): 19 5/8″
Door Mountable Required, Included
Installation Type Cabinet Floor Mounted
Mount Type Cabinet door and floor
Primary Finish Semi-gloss
TSCA Title VI Yes
Number of Waste Containers 2
Waste Container Capacity 30.000000
Order Increment 1
Designed for 15″, 18″ and 24″ base cabinets
Single 35 qt. and double 30 and 35 qt. polymer containers, metallic silver or white
Maple dovetail frame with semi-gloss finish
2 slide configurations available:
– 35 qt. containers include full-extension with 1-1/2″ over-travel, ball-bearing, 150 lb. rated, concealed slides
– 30 qt. containers include full-extension with 3/4″ over-travel, MOVENTO, 110 lb. rated, concealed slides with BLUMOTION soft-close
Rear storage with single 35 qt. and double 30 qt. units
Mounts to cabinet door and floor
Patented pre-assembled door mount brackets (US Patent No. 6,390,576)
35 and 50 qt. polymer lids available (sold separately)
TSCA Title VI Compliant
4WC-24DM2-SC Installation Instructions
