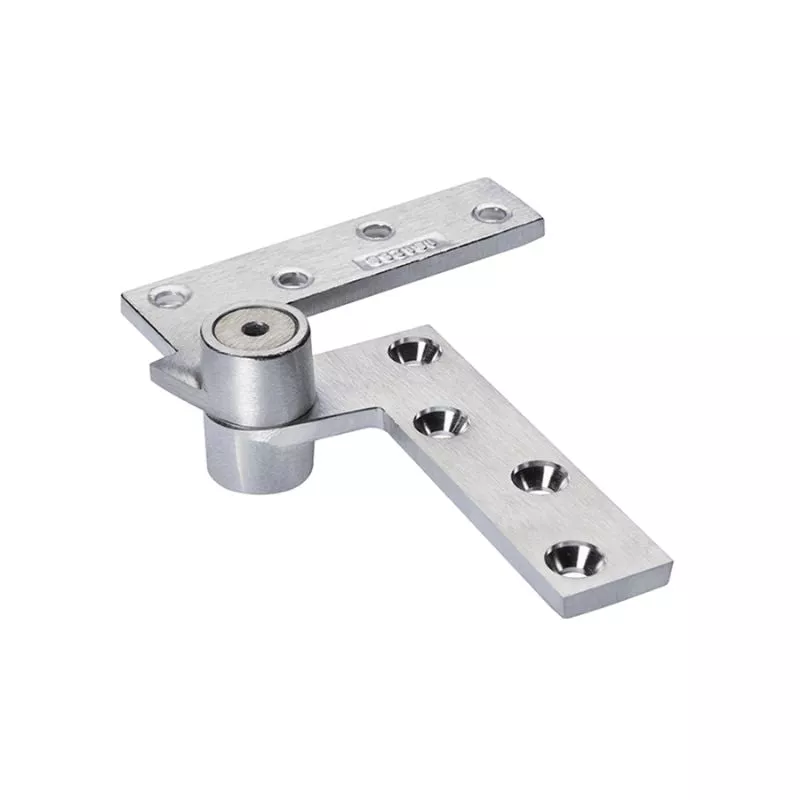

Rixson 180 Standard Top Pivot, 3/4 Inch Offset, Non Handed
The Rixson 180 Standard Top Pivot offers a 3/4 inch offset and is non-handed, making it a versatile choice for any door installation.
Application
• Full Mortise
• Non-handed
• Standard Top Pivot
Description/Features
• Standard top pivot for most offset pivot sets and floor closers
• Oil-impregnated sintered bronze bushing
• Non-ferrous base material
• Available for fire door assemblies (ferrous material) – specify F180
• For 20-minute label suffix “–20” to the part number
• 3/4″ (19mm) offset (measured from the centerline of pivot to face of door)
• Available for 1-1/2″ (38mm) offset
• Furnished with wood and machine screws
• Available with longer than standard pivot pins. Increments are 1/4″ (6mm), 1/2″ (13mm), 3/4″ (19mm) only
• For extra wide or high traffic applications see Model H180
