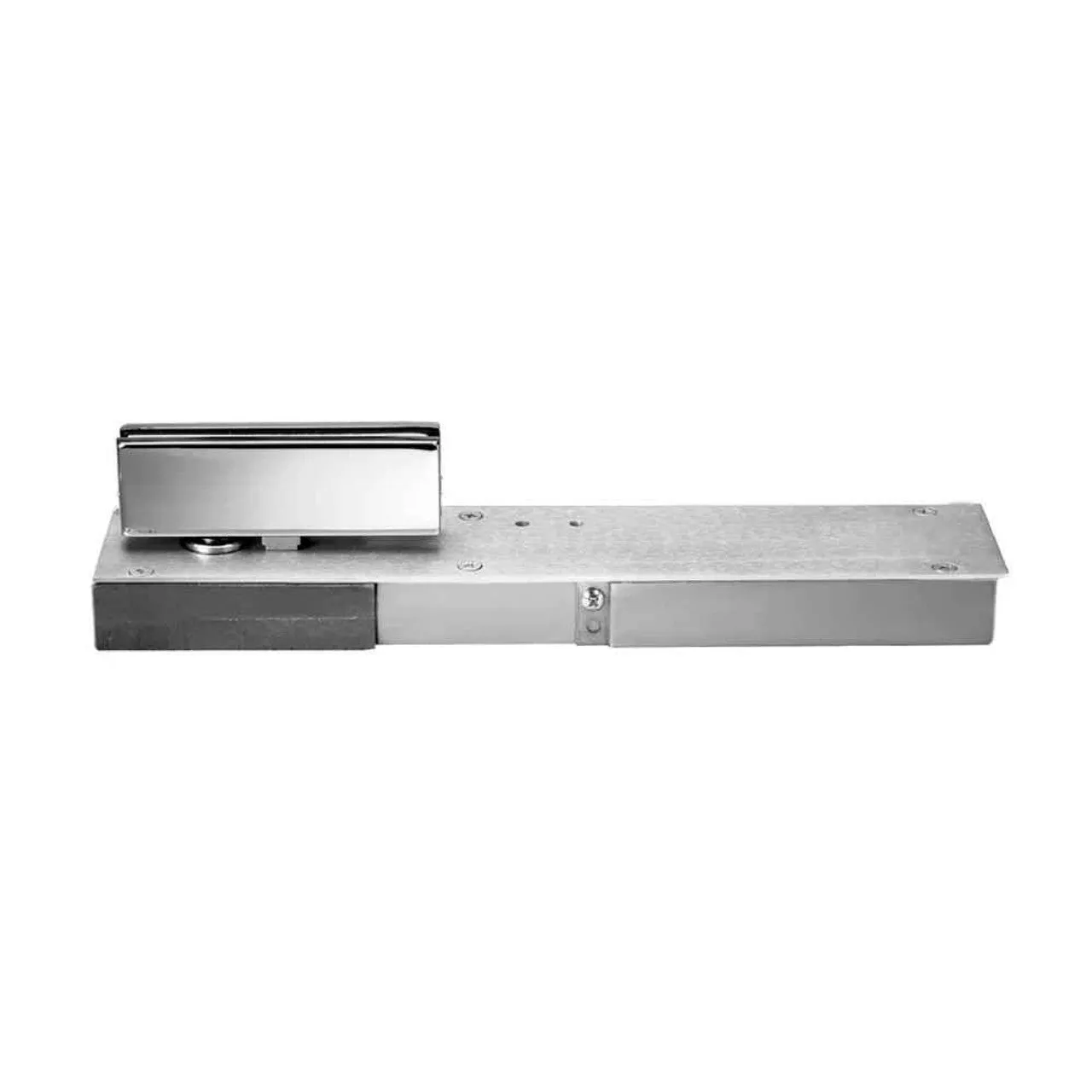

MODEL 5040 | CENTER HUNG, SINGLE ACTING FLOOR CLOSERS
The Norton Rixson 5040 Series is a single-acting, center-hung, shallow-depth floor closer designed for standard glass door installation on interior doors weighing up to 200 pounds.
PRODUCT FEATURES
- 5040 series floor closer, non-hold open w/ backcheck
- Single acting, handed
- Interior, full glass doors
- Special top pivot included
- 36″ Door Width
- Top and bottom patch fittings for tempered glass doors 3/8″ – 1/2″ thick
- Available non-hold open (NBC) or automatic hold open (ABC); specify 90° or 105°
- Separate and independent valves for closing speed, latch speed, and backcheck
- Floor plate standard; for threshold application, an extended spindle is required (there is no vertical adjustment)
- Interchangeable spindle adapters
- Cycolac, rust-proof cement case
- Door sizes up to 3’6″ x 8’0″ (1067-2438mm)
- Door weighs up to 200lbs.
