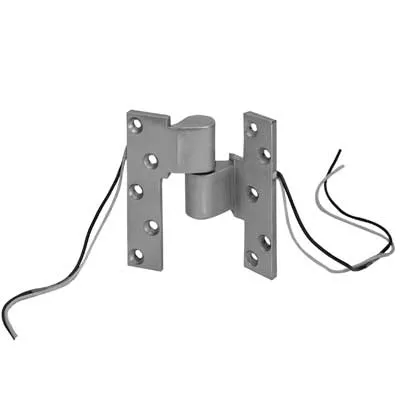

Rixson E-M19U-8 Electrified Intermediate Pivot, 8 wire Power transfer, Handed, 626 – Satin Chrome (US26D)
Application
- Offset Hung
- Electric Pivot for Power Transfer
- Handed
- For Electrified Panic Devices with Large Inrush Current
Description/Features
- Not load-bearing
- Always use M19 intermediate pivot to install the door
- The door and jamb portions are factory assembled and cannot be separated
- Junction boxes are supplied with pivots
- Two each 18 gauge wires. Each wire is rated at 2 amps continuously. UL is listed for 24-volt, Class I wiring
- ElectroLynx® option not available
- Not available in ferrous material
- 3/4″ (19mm) offset
- Door edges must be beveled in 1/8″ in 2″
- Furnished with wood and machine screws
