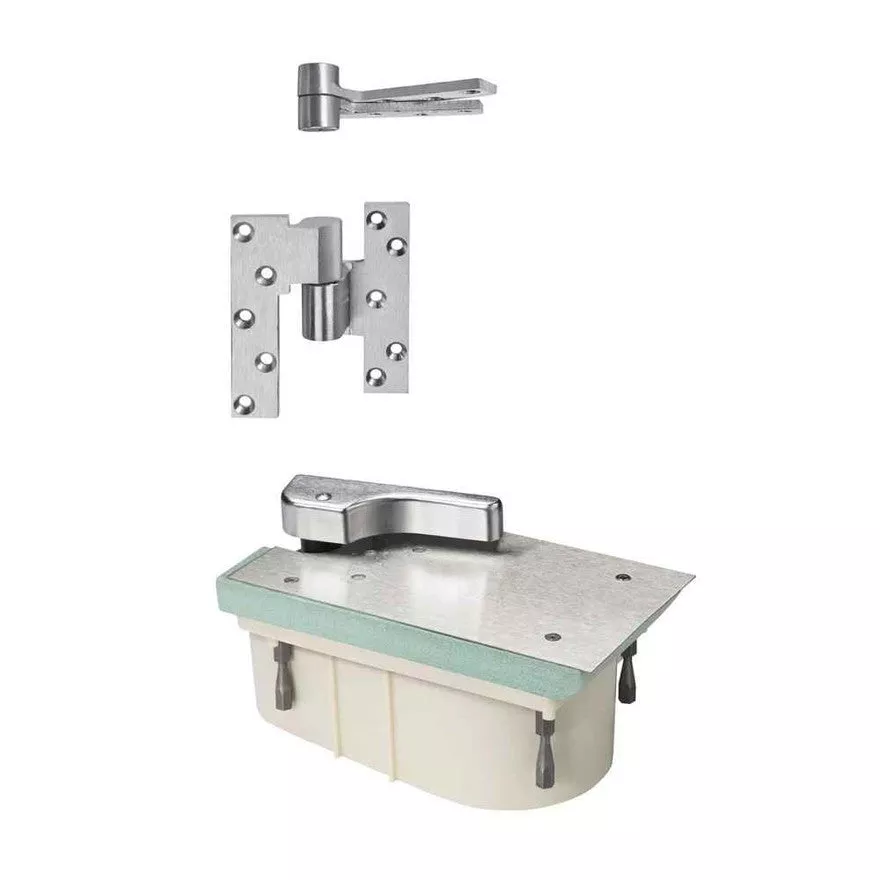

MODEL Q27/QT27 | 3/4″ OFFSET HUNG FLOOR CLOSERS
The Norton Rixson Q27/QT27 Series is a 3/4″ offset-hung floor closer designed for 1 3/4″ door frame installation for interior or exterior doors weighing up to 350lbs.
PRODUCT FEATURES
- Q27 floor closer, non-hold open
- Single acting, handed
- Exterior or interior doors
- 180 top pivot included
- One M19 intermediate pivot included (closer cannot be ordered without the intermediate pivot)
- Available non-hold open (N) or selective hold open (S) at the same degree as dead stop
- Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95°
- Separate independent valves for closing speed, latch speed, and backcheck
- Vertical door adjustment
- 3/4″ offset only
- Cycolac, rust-proof cement case
- Doors 60″ (1524mm) to 90″ (2286mm) in height should use one intermediate pivot – each additional 30″ (762mm) warrants another intermediate pivot
- Mortise arm with thru-bolt attachment
- Furnished with wood and machine screws
- Door width up to 4 0″ (1219mm)
- Door weighs up to 350lbs.
