Safety Speed Manufacturing C5 Vertical Panel Saw w/ 64″ Cutting Height

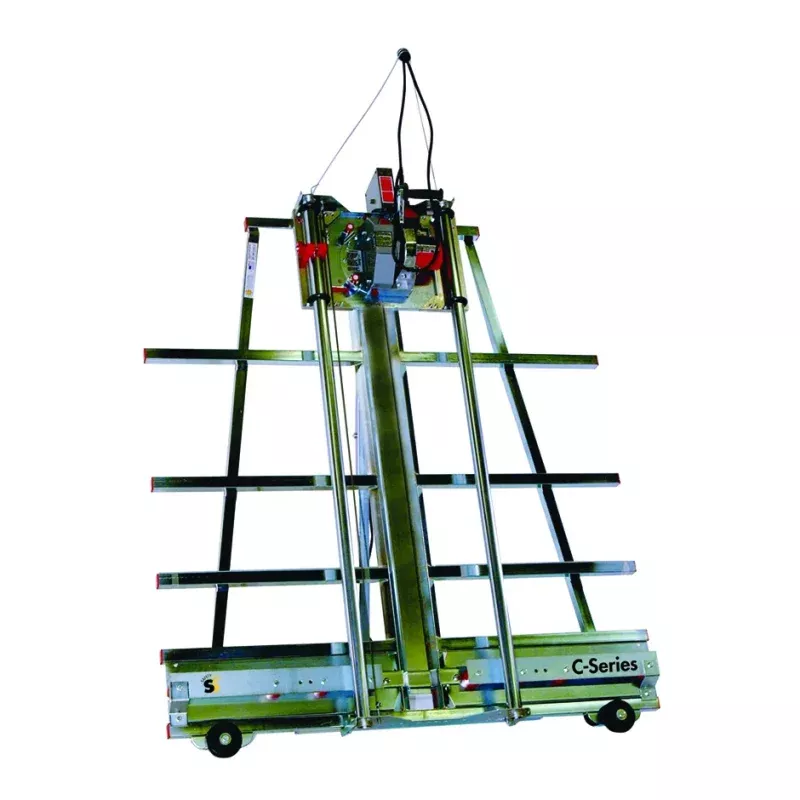

The C5 portable panel saw features a 64″ maximum crosscut and cuts material up to 1.75″ thick. Photos are shown
shown with a stand and wheels, which are optional accessories
This panel saw can travel to work sites and fit into shops with limited floor space. The only difference between
this machine and the C4 Panel saw are the maximum crosscut lengths.
Features:
- 3-1/4 Hp, 15 amp industrial, Milwaukee Tool motor.
- Zinc plated 1-3/4″ steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
Specifications:
- Weight219 lbs
- Dimensions60 x 11 x 83in
- Max. Crosscut64″/1625mm
- Max. Rip Cut96″/2450mm
- Cut Depth1-3/4″/45mm
- Cut Accuracy1/32″/.8mm
- Frame Length60″/ 525mm
- Saw Blade Diameter8″/210mm
- Saw Blade Bore Size5/8″
- Daily Usage1-3 Hours
- Rollers8
- Motor volt and amperage15 amp, 120V, 7.5 amps, 220V
- Motor ManufacturerMilwaukee Tool
- Country of OriginUSA
