Safety Speed Manufacturing H5 Vertical Panel Saw w/ 64″ Cutting Height
Featuring a 10′ frame, and 64″ maximum crosscut with an unlimited rip cut, the H5 panel saw is a preferred
solution for cabinet and furniture makers. The only difference between this model and our H4 and H6 models are

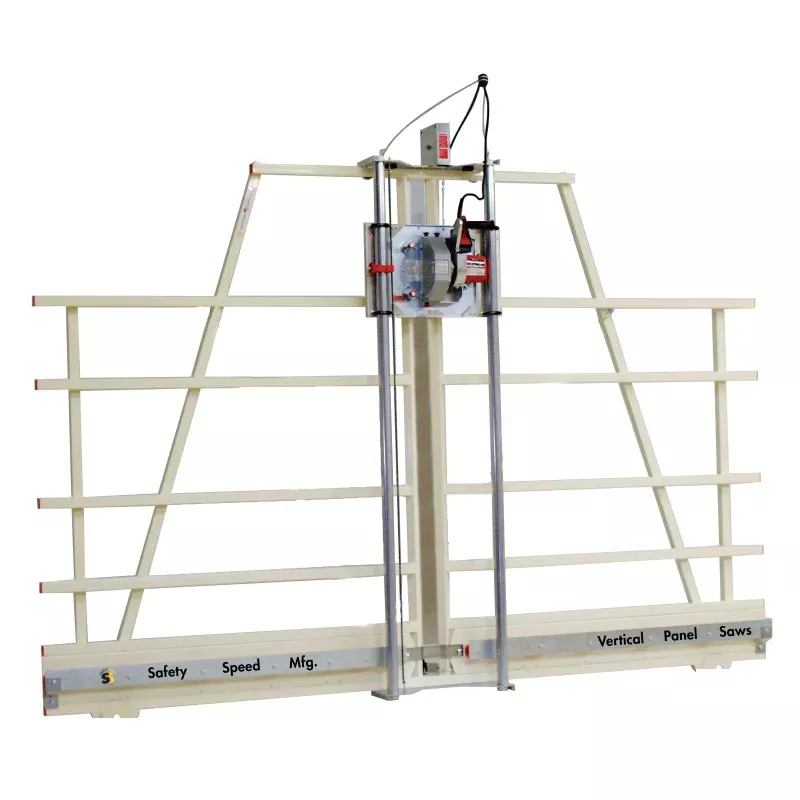

that they provide 50″, and 74″ maximum crosscuts. Photos are shown with a stand, and wheels which are optional
accessories
Features:
- 3-1/4 Hp, 15 amp industrial, Milwaukee Tool motor.
- Zinc plated 1-3/4″ steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Injection-molded plastic material rollers.
- Spring loaded counter balance system.
- Integrated dust collection bonnet.
- Extended warranty.
- TUV certified to UL/CSA standards
Specifications:
- Weight298 lbs
- Dimensions120 x 11 x 83in
- Max. Crosscut64″/1625mm
- Max. Rip CutUnlimited
- Cut Depth1-3/4″/45mm
- Cut Accuracy1/32″/.8mm
- Frame Length120″/3050mm
- Saw Blade Diameter8″/210mm
- Saw Blade Bore Size5/8″
- Daily Usage1-3 Hours
- Rollers14
- Motor volt and amperage15 amp, 120V, 7.5 amps, 220V
- Motor ManufacturerMilwaukee Tool
- Country of OriginUSA
