Safety Speed Manufacturing 6800 Vertical Panel Saw w/ 74″ Cutting Height
Featuring a heavy duty worm drive motor, additional steel frame supports, aluminum wheels and double bearings,
this machine will deliver an accuracy of 1/64″. The 6800 can cut sheets up to 74″ without blinking an eye.
Features:
- 3 Hp worm driven heavy-duty saw motor.
- 10 ft. welded steel frame.
- Chrome-plated 1 3/4″ guide tubes.
- 8 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Quick change from vertical to horizontal cutting.
- Thin material pressure guard.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- Integrated dust collection bonnet.
- TUV certified to UL/CSA standards.
Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:
- An upgraded, worm drive motor providing greater longevity.
- 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible
by additional bearings. - Additional steel welded at a diagonal plane adding significant weight to the frame.
- A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter
balance. - Additional bearings within the motor providing a tighter cutting tolerance.
- Aluminum material rollers instead of red material rollers .

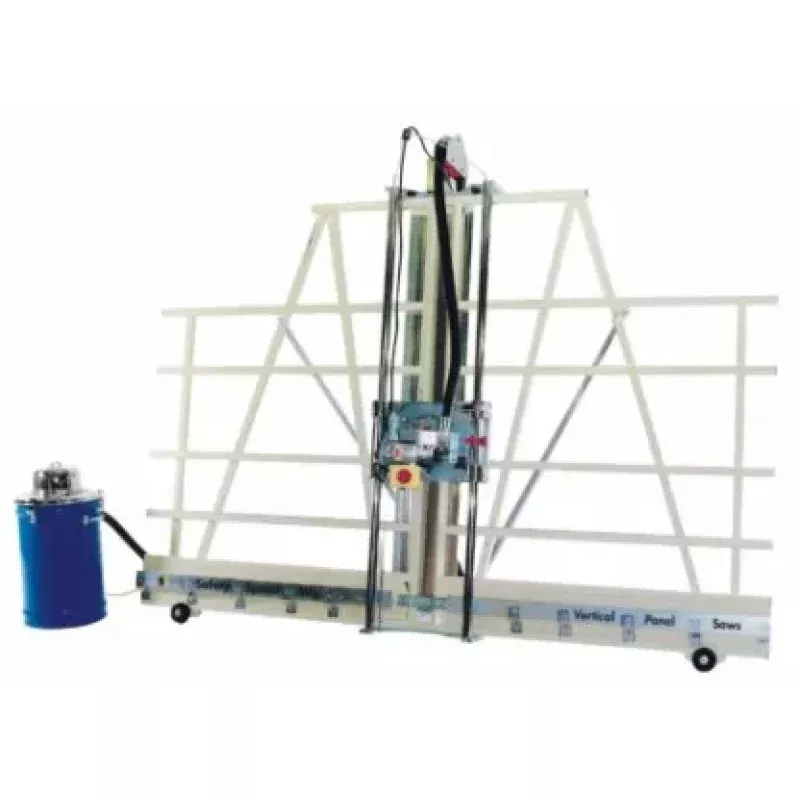

Photos are shown shown with a stand, wheels, and a dust kit, which are optional accessories
Specifications:
- Weight660 lbs
- Dimensions124 x 17 x 98in
- Max. Crosscut74″/1850mm
- Max. Rip CutUnlimited
- Cut Depth1-3/4″/45mm
- Cut Accuracy1/64″/.4mm
- Frame Length120″/3050mm
- Saw Blade Diameter8″/210mm
- Saw Blade Bore Size5/8″
- Daily Usage3-5 Hours
- Rollers14
- Motor volt and amperage13 amp, 120V
- Country of OriginUSA
