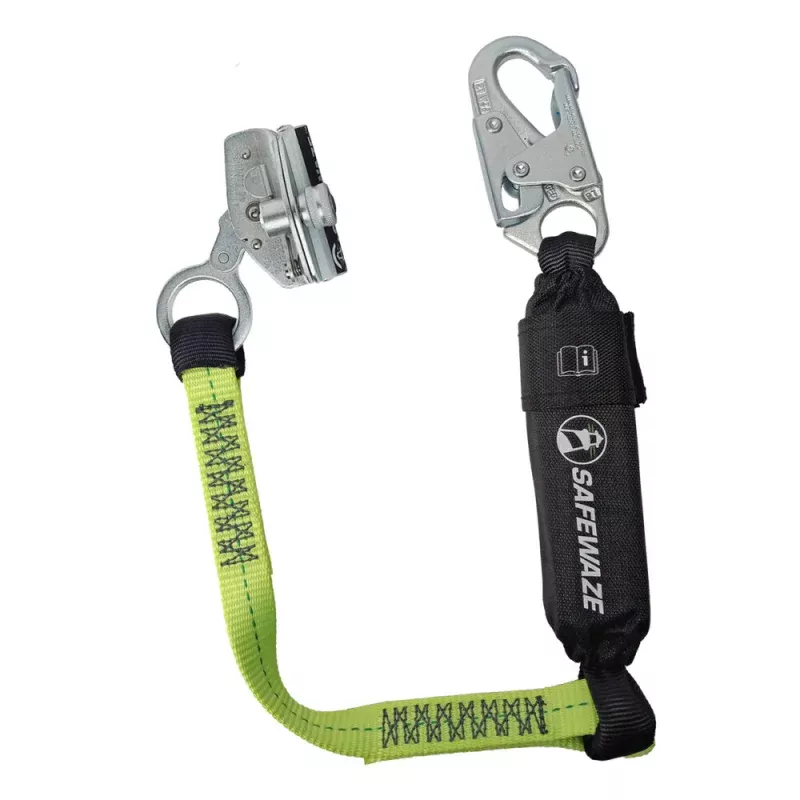

Self-Tracking Rope Grab Assembly

The Self-Tracking Rope Grab Assembly works on most VLLs with 3 strand twisted rope. Easy to install and locks automatically to reduce shock during a fall. Built with a 3 polyester web energy absorbing lanyard, steel snap hook and stainless steel non-trailing rope grab.

Features:

• Zinc plated steel self-tracking grab
• Removable versatility
• Fits 5/8″ (16 mm) rope
• 3′ web energy absorbing lanyard
• All components are Z359.12 compliant

Specifications:

Materials: Polyester webbing; Zinc plated steel hardware Weight: 3.2 lbs. (1.5 kg) Minimum Breaking Strength: 5,000 lbs. ANSI Weight Capacity: 130-310 lbs. (59-141 kg) ANSI Standards: Z359.13-2013, Z359.15-2014* *when used in conjuction with ANSI approved and compatible vertical lifeline OSHA Standards: 1926.502, 1910.66, 1910.140
