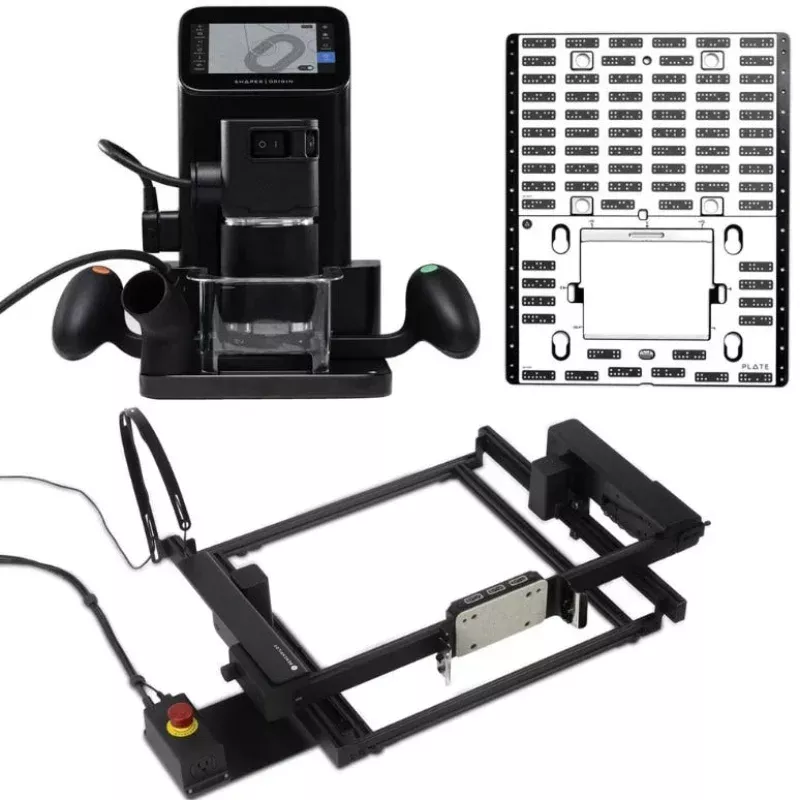

Shaper Tools Origin + Plate + BenchPilot SO2-P-BP
Shaper Tools Origin SO2-NN
Shaper Origin is a handheld CNC routera category of tool invented almost a decade ago. It has the familiar form factor of a traditional router, with the precision of a high-end CNC machine. You steer Origin following the path on-screen, while it makes small auto corrections within a 1/2 range, leaving you with perfect results. Cutting a joinery, profiles or patterns, and engraving for signage can all be handled directly on-tool, no programming required. It also works with almost any design software you use. So how does it work? Watch the video below.
- Touch screen: Capacitive multi-touch full-color LCD.
- Brushed Motor Spindle: Produced with Festool to Shaper specifications.
- WiFi & USB: Over the air software updates, USB port allows easy offline transfer of design files.
- Dust Port: Fits most standard 27mm & 36mm suction hoses.
Origin utilizes ShaperTape (the domino looking stuff) and an on-board camera to accurately track its position while you are working.
Shaper Origin Review
Most manufacturers in the portable CNC market decided to throw in the towelbut not Shaper Tools. Read our review to see how Origin broke new ground.
Industry Applications
Origin works alongside the shop tools you currently use, providing fast and highly precise results. Youll end up reaching for Origin more than youd imagine.
Fine Furniture:Template routing, joinery, inlays, drawer pulls, the list goes on. Origin shines alongside your existing shop tools.
Advanced Joinery:If you can dream it, you can cut it. Achieve fully custom, tight-fitting joinery, right out of the box.
Hardware Installation:Free to use, pre-made digital templates from top manufacturers mean you can install hardware with ease and precision.
Custom Signage:Custom signs are not only easy to design with the Shaper System, but also easy to produce.
Flooring:Inlays, custom registers, and flooring repairs can all be achieved directly on the job site.
No programming required
Set Up Your Workspace
Begin by scanning your work area. Origin automatically detects and stores this as a Workspace.
Add Designs
Easily create or import designs; no programming required.
Start Cutting
Switch the spindle on and get cutting. Make changes on the fly to adjust for real-world fit. Origin autocorrects your movements so you get perfect results.
Specifications
Designed and engineered by Shaper in California. Assembled with care by Festool in Germany.
- Weight: 14.9lbs
- Height: 12.04in
- Depth: 8.94in
- Width: 13.35in
- 1/4″ Collet: Accepts any commonly available 1/4″ shank router bits
- 43mm: Digitally adjustable depth-of-cut Automated touch-off sensor
- Input Power: 120 VAC (60HZ)
What’s Included
Origin ships with all of the basic tools you need to get cutting on day one.
- Tanos Systainer3:23.5 lbs (Origin packaged with accessories) 15W x 11D x 17
- ShaperTape:A single roll provides ample coverage for approximately one and a half standard 4′ x 8′ sheets of plywood
- 4mm T-Hex Wrench:For spindle removal
- 19 mm Wrench: For loosening the collet
- Router Bits:1/4, 1/8, engraving bit
BenchPilotSCFP1-AJ-NN
Tired of driving Origin around? BenchPilot enables automated, hands-free cutting for Origin (Gen1 and Gen2) so you can focus on other tasks at hand. Clip Origin into BenchPilot and let it drive Origin from point A to point B, while Origin continues to handle the small precision movements. Think of it like autopilot for Origin.
Dimensioned and sized to fit perfectly with Shaper Workstation, BenchPilot creates a gantry-like system with horizontal and vertical milling capabilitiesflexible for cutting joinery, inlays, intricate engravings, or profiles. It can also be mounted without Workstation and fit directly to your bench. Its great for batch work or simply tedious and time-consuming jobs. Best of all, it doesnt require complicated software, g-code, or other types of CNC programming to operate. If you know how to operate Origin, youll know how to operate BenchPilot.
- Drives Origin Automatically:Removes physical strain from long hours of Origin operation.
- Clip In, Unclip:Transform Origin to hands-free operation when you want to, then take Origin on the go when you need it.
- Variable feed rate control knob:Dial in the speed you want with real time control.
- Timer display: Origin will display its progress and time remaining while cutting with BenchPilot.
Shaper Plate
Shaper Plate expands Origins capabilities by making it easy to align digital files on Origin to a pencil mark on your workpiece. Simply mark your stock, align Plate, and cut with Origin. With multiple fences along the front edge and sides of Plate, in addition to a center drop down reticle, you can align your design virtually anywhere within Plates cutting window. Best of all, just like Workstation, your Origin will remember the workspaces you create with your Plate.
- Built-in ShaperTape: Plate is made with durable and reusable ShaperTape so you can scan once and reuse Plate again and again.
- Anti-Slip Mat:Plates back side is covered in an anti-slip mat, making it easy to cut most jobs without needing to clamp Plate to your workpiece.
- System 32 Ready:Use the included System 32 pin to tile Plate while maintaining 32 mm hole spacing
- Cutting Window: 120mm X 160mm
