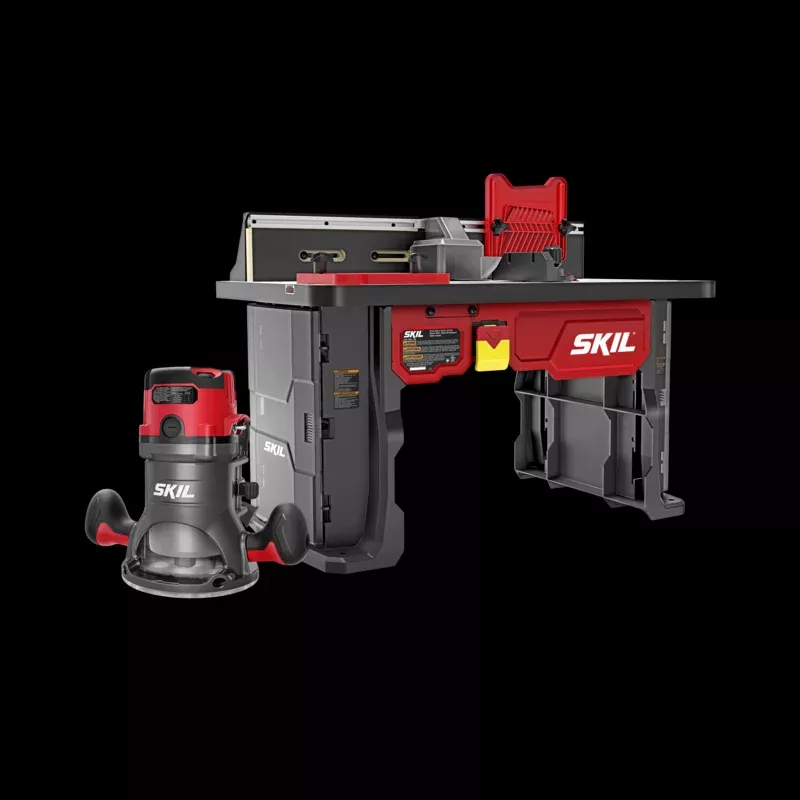

Router Table and Fixed Base Router Kit by SKIL (RT1323-01)
Speed control dial provides the right speed for the material, and LED lights on the motor base illuminates the
work area. Its ergonomic handles and tough die-cast motor housing makes this perfect for routing with both 1/2
in. and 1/4 in. shank router bits. The 10 Amp Fix Base Router’s 1-3/4 HP motor cuts through soft and hard woods
as well as plastic, and is also equipped with a live tool safety indicator, three LED lights, soft start with
6-speed variable control, quick-set screws for fixing the edge guide, and a built-in vacuum port.
Compatible with many major router brands, the SKIL SRT1039 Router Table brings convenience to the job. Get
started with the quick and easy router clamp that attaches your router to the underside of the table. With the
above table router lift, you’ll get convenient access to adjust the height of the router bits without reaching
underneath the table. This router table is also equipped with a dual-sided integrated router bit storage system
to store all your bits in a central location.
Features:
- DURABLE & ERGONOMICDie-cast motor housing and shaped handles provide superior grip
and control. - ROUTER TOOL COMBO KITIncludes SKIL Router Table (SRT1039) and SKIL 10 Amp Fixed
Base Corded Router (RT1323-00). - SKIL 10 AMP FIXED BASE ROUTERPowerful 10 Amp, 2.0 HP motor provides smooth and
accurate routing from start to finish; equipped with soft start, speed control, and a live tool indicator - LARGE ALUMINUM FENCEThe aluminum fence measures 24 inches wide and is complete
with adjustable MDF face plates and a starter pin and guard for smooth operation with taller work pieces - CONVENIENCEGain convenient access to router bits with Above the Table Adjustment
and Integrated Bit Storage, and use the Router Clamp to quickly attach tools under the table - SKIL ROUTER TABLEEquipped with Above the Table Adjustment, Integrated Bit Storage,
Aluminum Mite Gauge Slot, Router Clamp, Starter Pin, and Two Featherboards for precise routing
Specifications:
- Fixed Base Router
- Collet Size1pc 1/4 IN. and 1pc 1/2 IN. collet
- No Load Speed10,000-25,000 rpm
- Power10 Amps
- Tool Height (inch)9-1/4
- Tool Length (inch)10
- Tool Weight (pound)8
- Tool Width (inch)6
- Router Table
- Fence MaterialPlastic+Aluminum+MDF
- Table MaterialMDF
- Table Size (inch)26×16
- Tool Height (inch)18
- Tool Length (inch)26
- Tool Width (inch)16
Includes:
- (1) SKIL 10AMP Fixed Base Router [RT1323-00]
- (1) SKIL Router Table [SRT1039]
Additional Information:
- Manual
- Parts Diagrams
