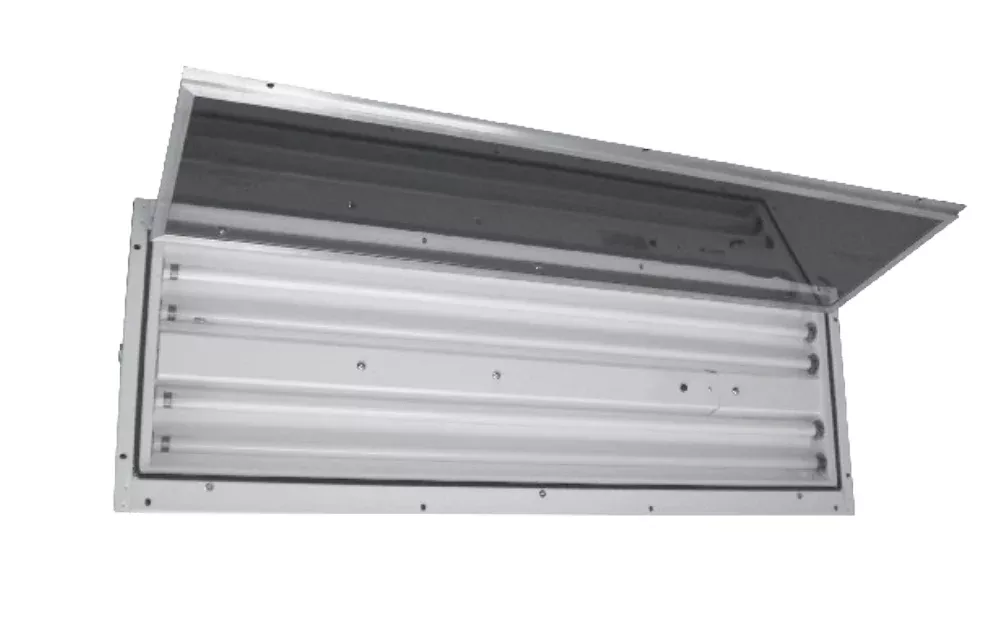

Four foot four lamp front access lamp fixture
- Available in 32 watt T8
- Available in 120, 277, & 347 volts – Multiple voltages available, consult factory
- Available in high light output
- Front / inside access for easy relamping
- Listed for locations having deposits of readily combustible paint residues
- Compact design (2 1/4″ fixture depth) allows for mounting in an insulated panel
- 20 gauge steel construction, coupled with a white baked enamel finish, creates a durable, highly reflective fixture
- Clear tempered safety glass hinged door panel ensures a durable, long lasting seal against vapor & dust
- For spray booth applications
- Spring loaded lamp holders to reduce shock and vibration
- Features a T8 Electronic Ballast for greater energy savings
- Panel mount design provides a simple but efficient means of installation
- Features an interlock switch to be wired in such a way as to disable paint spray equipment when front access door panel is opened
- Application:Class I Division 2; Class II Division 2; Paint Spray Booth
- ETL listed and Canada listed ETL-C
- Class I, Division 2, Groups A, B, C & D
- Class II, Division 2, Groups F & G
- Meets NFPA-33 requirements for inside access
- Bulbs sold separately
OPTIONS:
All Options Ordered Separately
EM: Emergency Battery Backup Ballast
5902: 8 Ft. 5-wire whip
Corner/Hip Mount 4714 (Available for the 390440J-3546 fixture ONLY)
