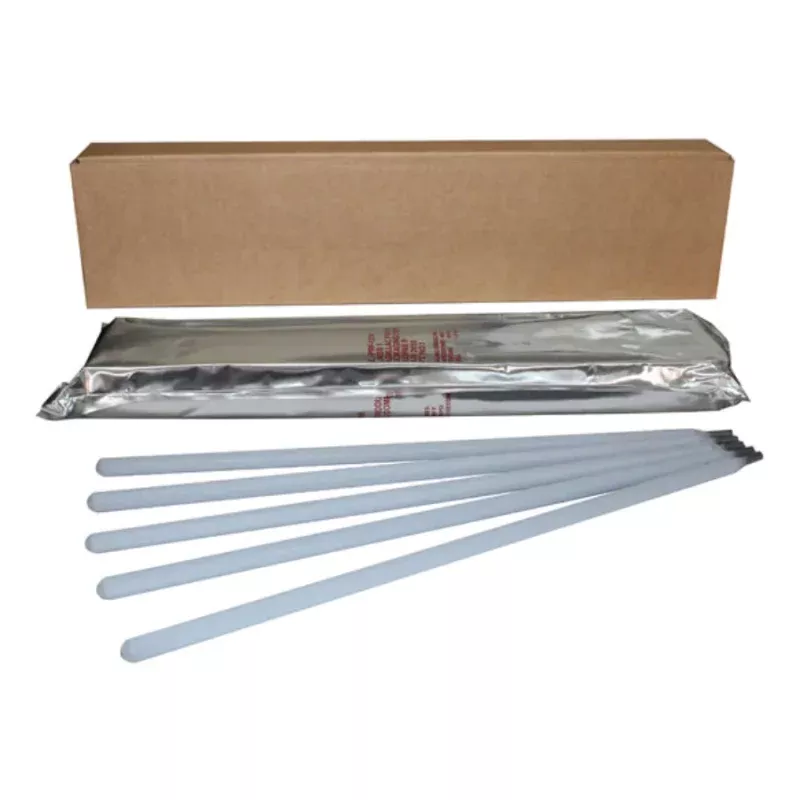

STOODY 31 General Purpose Hardfacing Electrode
Stoody 31 is the most general purpose hardfacing electrode in Stoody’s product line. It offers an excellent balance of abrasion resistance and impact strength, making it very versatile.
Stoody 31 is a tubular electrode with an extruded coating. Deposits have a
low coefficient of friction and provide good resistanceto corrosion and heat. The deposits are not machinable or forgeable. Weldability is excellent with slag coverage
that is virtually self-removing. Stoody 31 can be applied to carbon, low alloy, and manganese steels.
- Sold in10 lb (4.54 kg) Vacuum Sealed Package
- 14″ Rods
- Part Number:11704600 – 1/4″ Rod diameter
TYPICAL MECHANICAL PROPERTIES
- Abrasion Resistance – Good
- Impact Resistance – Moderate
- Hardness, HRC 4549
- Magnetic:
– On Carbon Steel Slightly
– On Manganese Steel No - Surface Cross Checks Yes
- Machinable No
- Deposit Layers 2
- Hot Wear Applications Up to 950F (510C)
Typical Applications
- Bucket arms
- Chain links
- Buckets
- Scrapers
- Rolling mill guides, pulleys
- Blades
- Hammers
- Crusher parts
Product Data Sheet
Non Stock Item – Allow 3 week lead time
